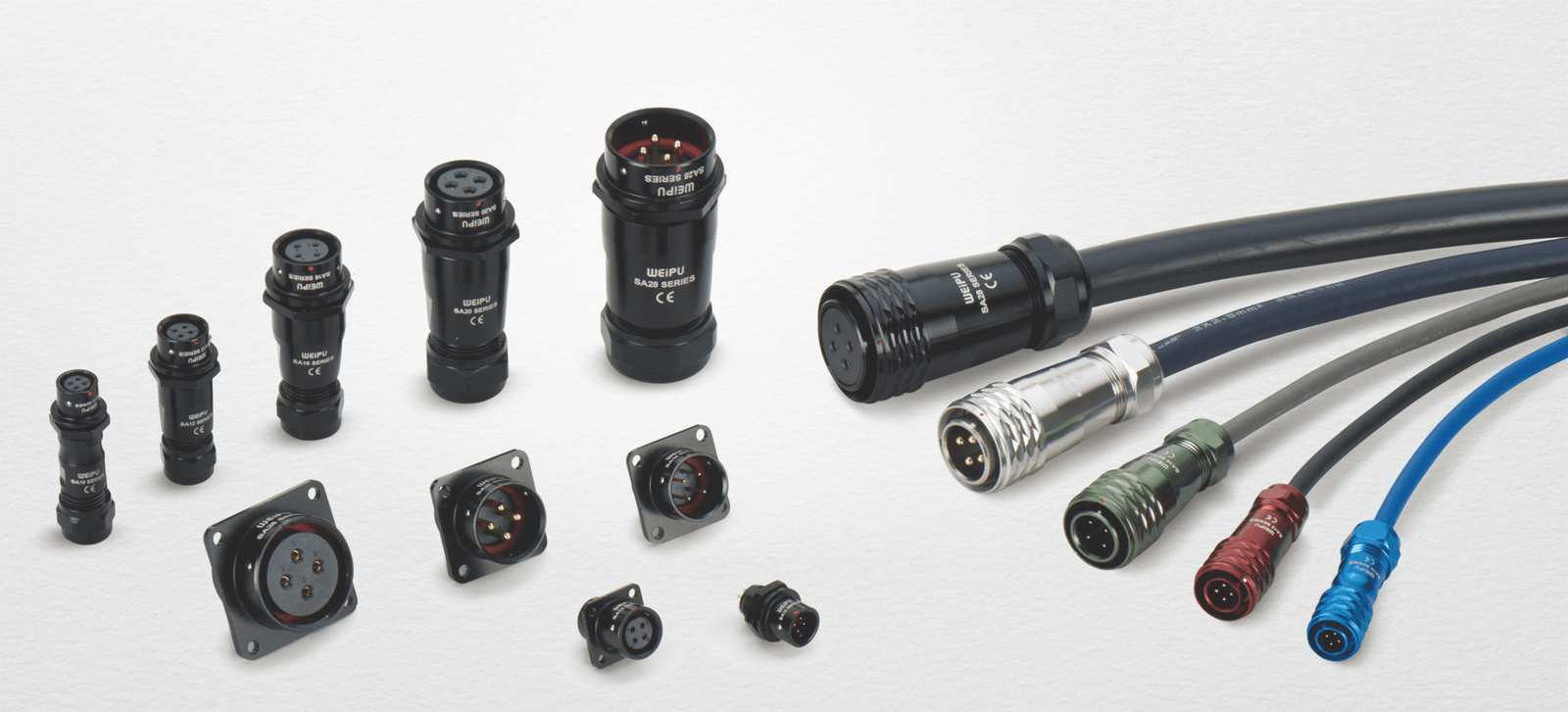

SA20
- Brand: WEIPU
- Reference: WEIPU-SA20
- Manufacturer reference: SA20
- Family: Industrial connectors
Price on request · On request

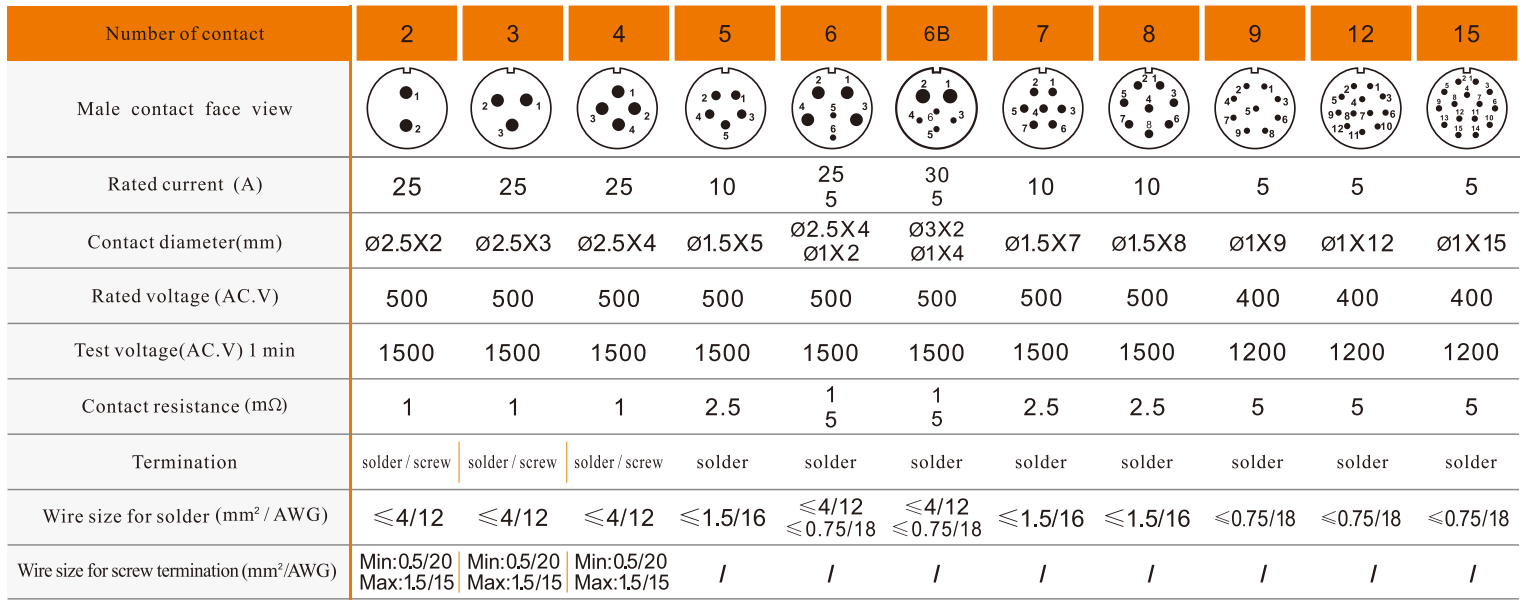

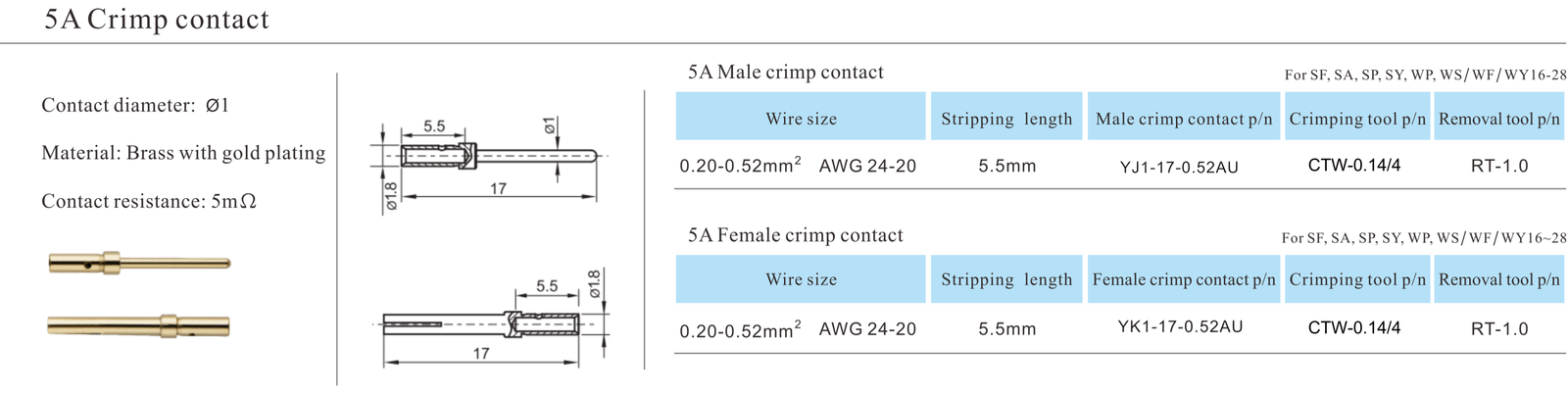

The WEIPU SA20 Series connectors are made from anodized aluminum, offering a reliable and durable solution for applications that require fast connection and easy handling . It provides flexible termination options with solder, crimp, or screw terminals, allowing for easy and efficient connection setups. All contacts in the SA20 Series are gold-plated to ensure superior conductivity and long-lasting performance. Key Features: • Medium Size: Perfect for applications requiring a reliable, space-efficient connector. • Contact Range: Available with 1-15 contacts, offering flexibility for various connection needs. • Rated Current: Supports 5-100 A, making it suitable for both low and high power applications. • Gold Plated Pins: Delivers enhanced conductivity, corrosion resistance, and increased durability. • IP67 Rating: … Key features: • Dust proof • Water tight • Multi-color • Quick connection Manufacturer reference: WEIPU SA20 — Circular Connector. Available to order. Lead time and price confirmed in the quotation. Supplied by ISIGECO: engineering support, manufacturer documentation and integration with your control system (PLC, fieldbus or IIoT gateway).

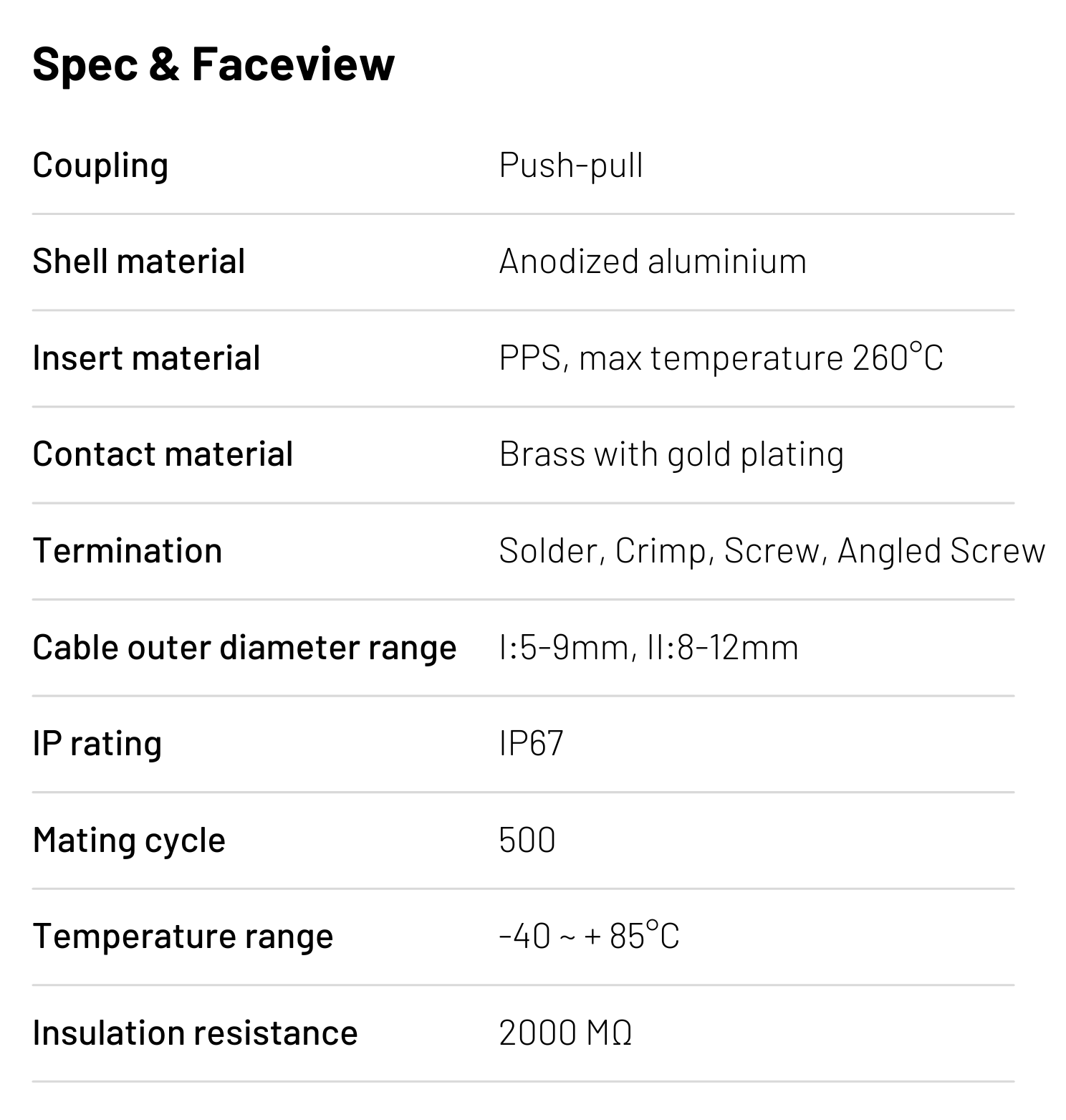

Specifications
| Protection rating | IP67 |

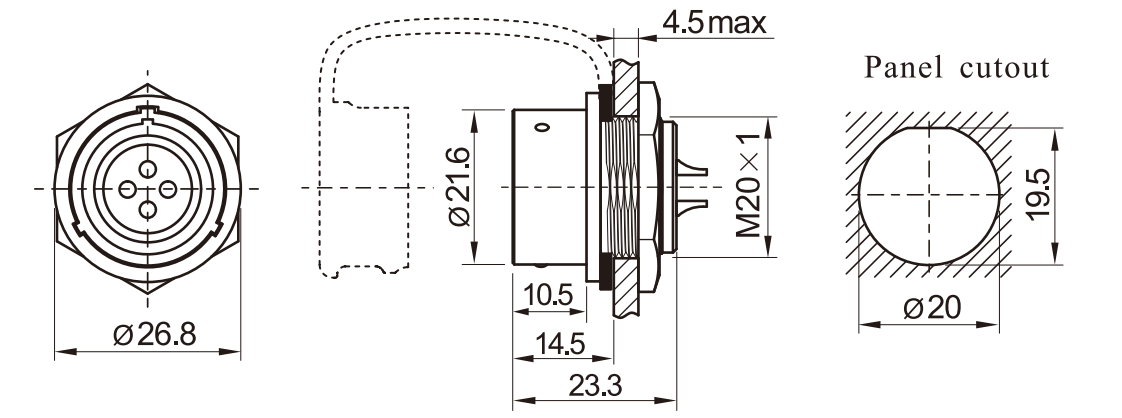

| Mounting hole size | 20 mm |
