SA10
- Brand: WEIPU
- Reference: WEIPU-SA10
- Manufacturer reference: SA10
- Family: Industrial connectors
Price on request · On request

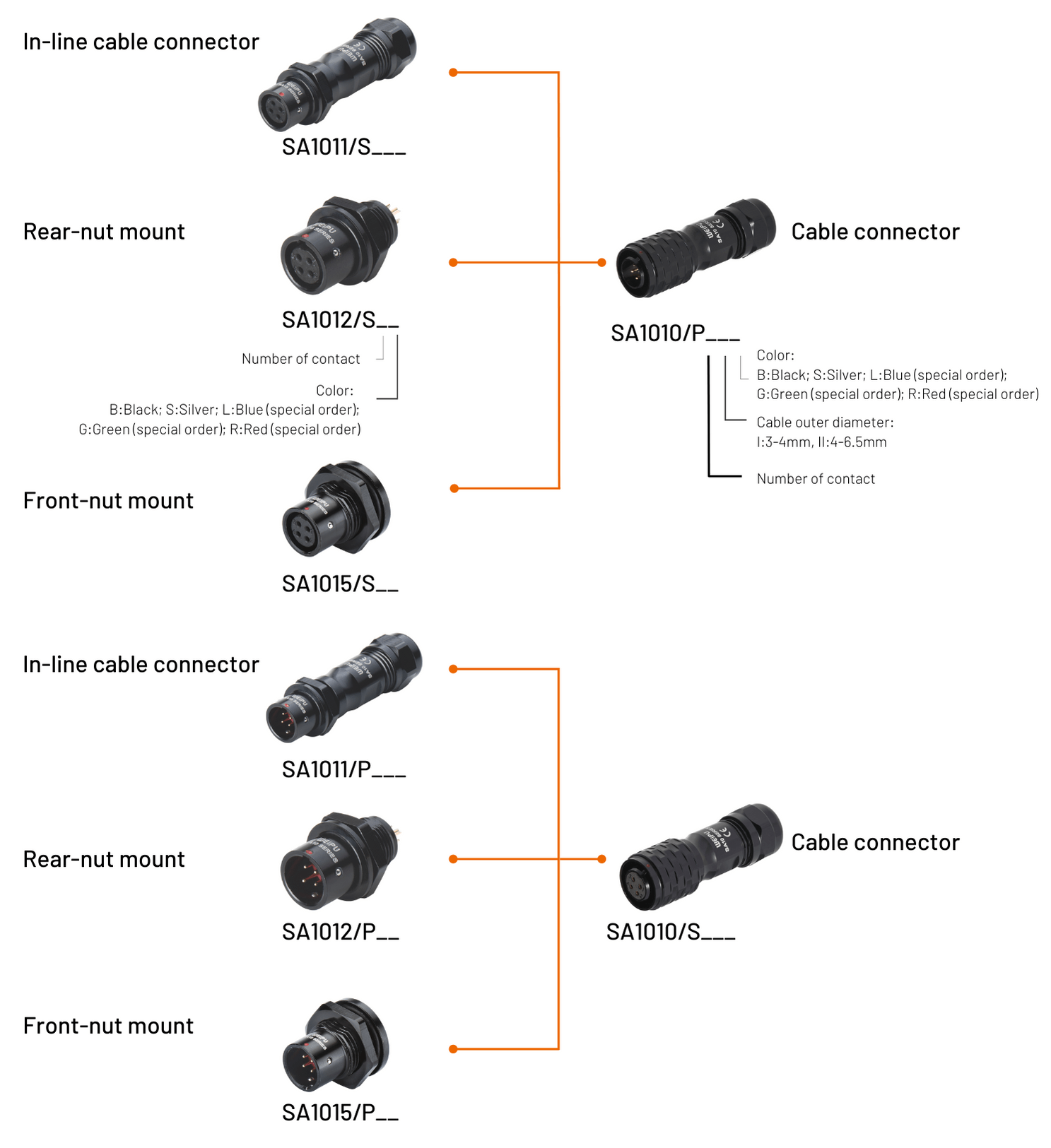

The WEIPU SA10 Series is an anodized aluminum connector designed for applications requiring fast connection and ease of handling. As one of the smaller sizes in the WEIPU SA Series, the SA10 offers versatile mounting options, including panel mount, cable mount, and in-line cable mount, providing flexibility for cable-to-cable or cable-to-panel connections. Key Features: • Small Size: Compact design, ideal for tight spaces and applications requiring minimal size. • Contact Range: Available with 2-5 contacts, providing the right connection options for various needs. • Rated Current: Supports 3 A & 5 A, suitable for low-power and data transmission applications. • Gold Plated Pins: Ensures reliable conductivity, corrosion resistance, and long-lasting durability. • IP67 Rating: Fully protected against dust and water… Key features: • Dust proof • Water tight • Multi-color • Quick connection Manufacturer reference: WEIPU SA10 — Circular Connector. Available to order. Lead time and price confirmed in the quotation. Supplied by ISIGECO: engineering support, manufacturer documentation and integration with your control system (PLC, fieldbus or IIoT gateway).

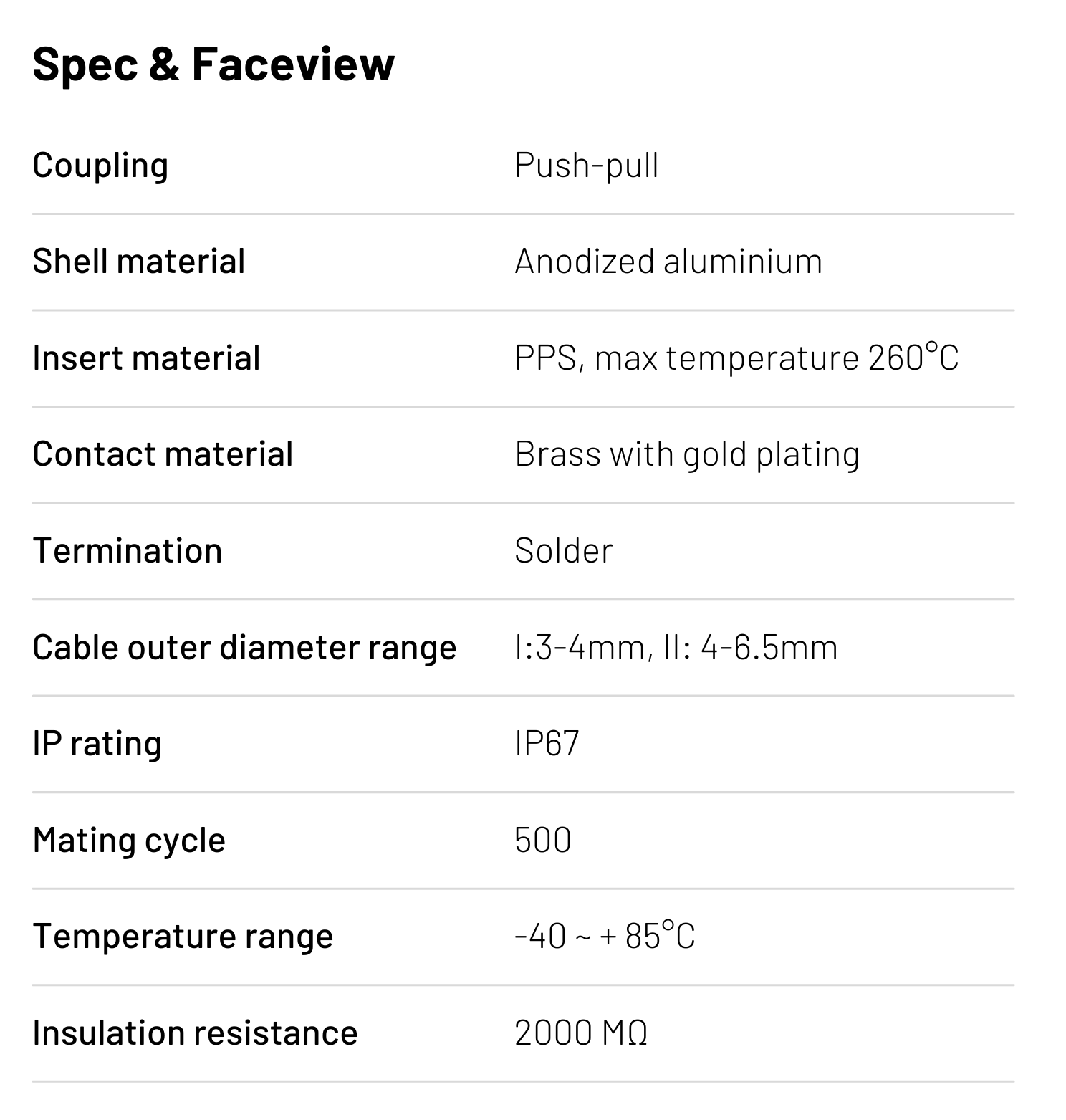

Specifications
| Protection rating | IP67 |
| Mounting hole size | 10 mm |
