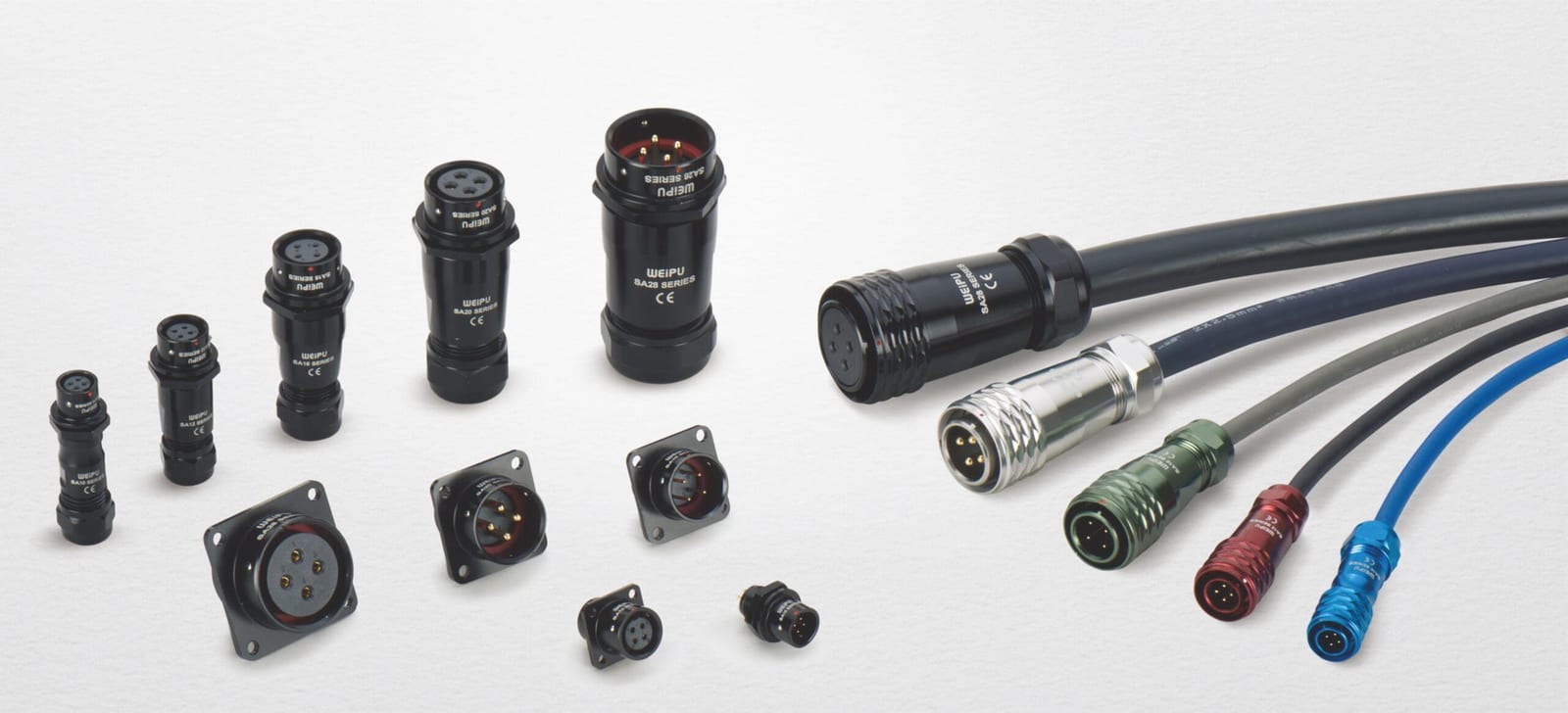

SA16
- Brand: WEIPU
- Reference: WEIPU-SA16
- Manufacturer reference: SA16
- Family: Industrial connectors
Price on request · On request

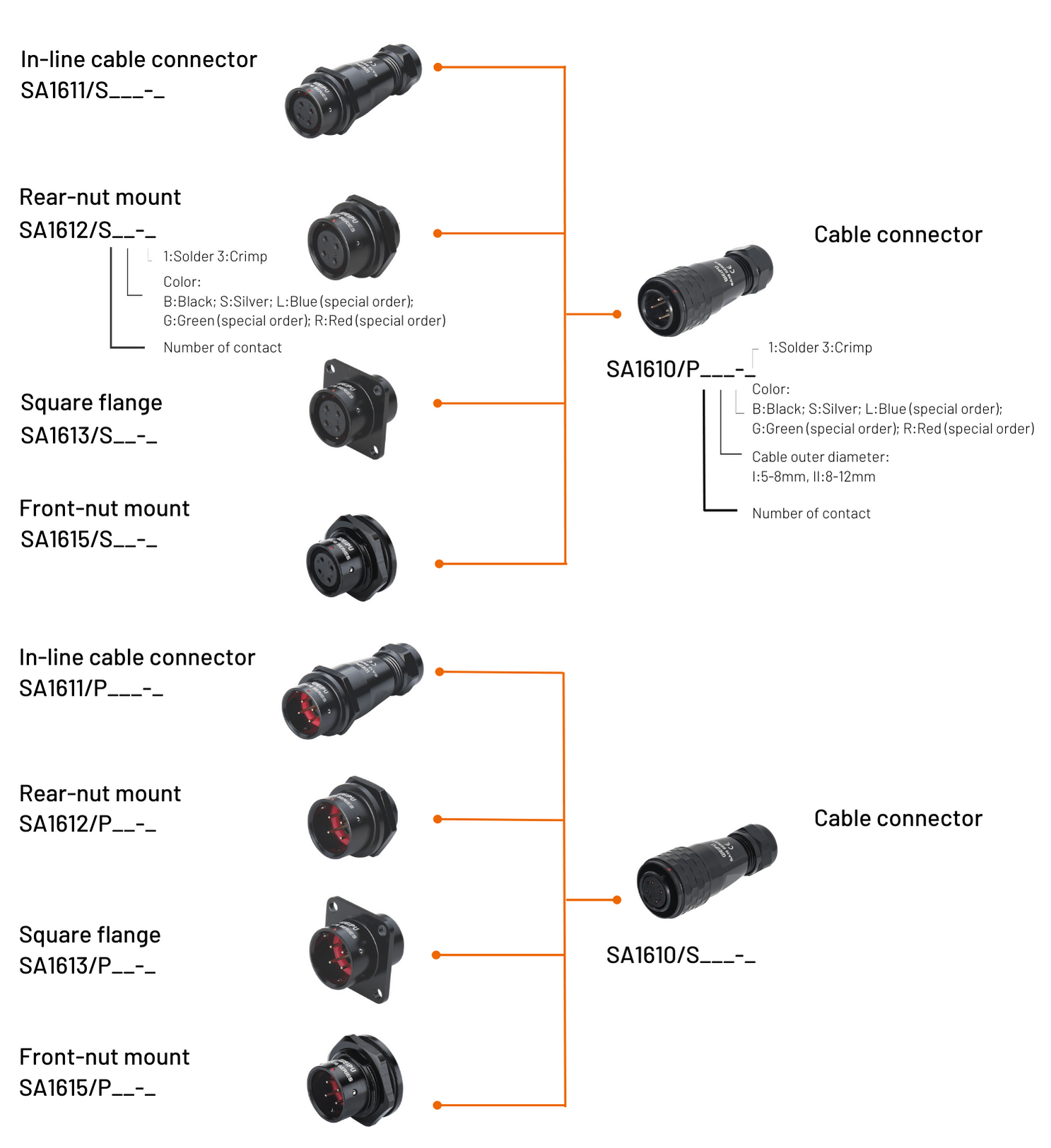

The WEIPU SA16 Series is a medium-sized waterproof connector that offers reliable performance in demanding applications. Designed with a push-pull coupling, the SA16 connector ensures fast, secure connections and is sealed to an IP67 rating, making it ideal for use in harsh environments. It is available with solder terminations or crimp terminals, allowing for easy and flexible installation. Key Features: • Medium Size: Ideal for applications with moderate space requirements, offering both compactness and reliability. • Contact Range: Available with 1-10 contacts, providing flexibility for different connection needs. • Rated Current: Supports 5-50 A, perfect for both low and medium power applications. • Gold Plated Pins: Ensures superior conductivity, corrosion resistance, and long-lasting performance. • IP67… Key features: • Dust proof • Water tight • Multi-color • Quick connection Manufacturer reference: WEIPU SA16 — Circular Connector. Available to order. Lead time and price confirmed in the quotation. Supplied by ISIGECO: engineering support, manufacturer documentation and integration with your control system (PLC, fieldbus or IIoT gateway).

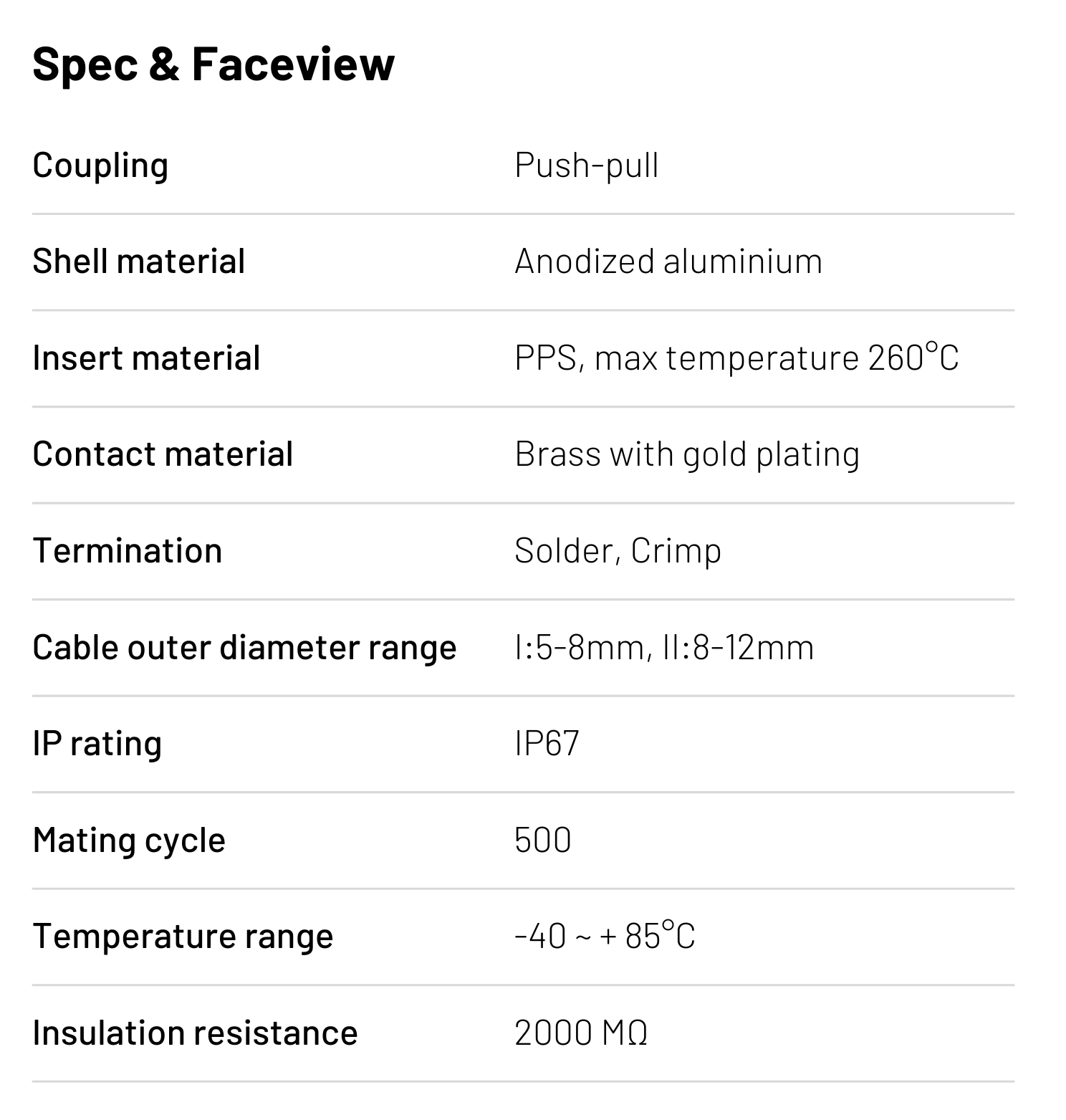

Specifications
| Protection rating | IP67 |

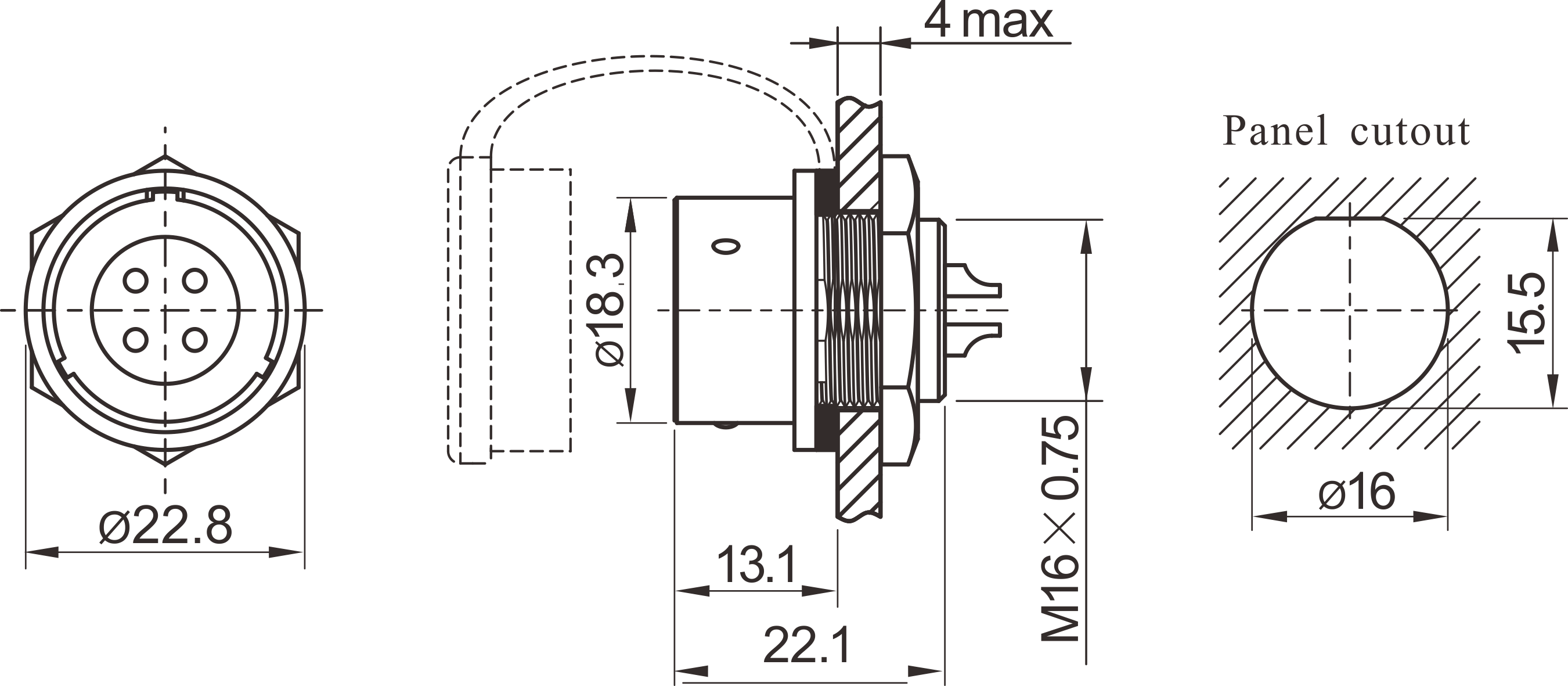

| Mounting hole size | 16 mm |
