SA12
- Brand: WEIPU
- Reference: WEIPU-SA12
- Manufacturer reference: SA12
- Family: Industrial connectors
Price on request · On request

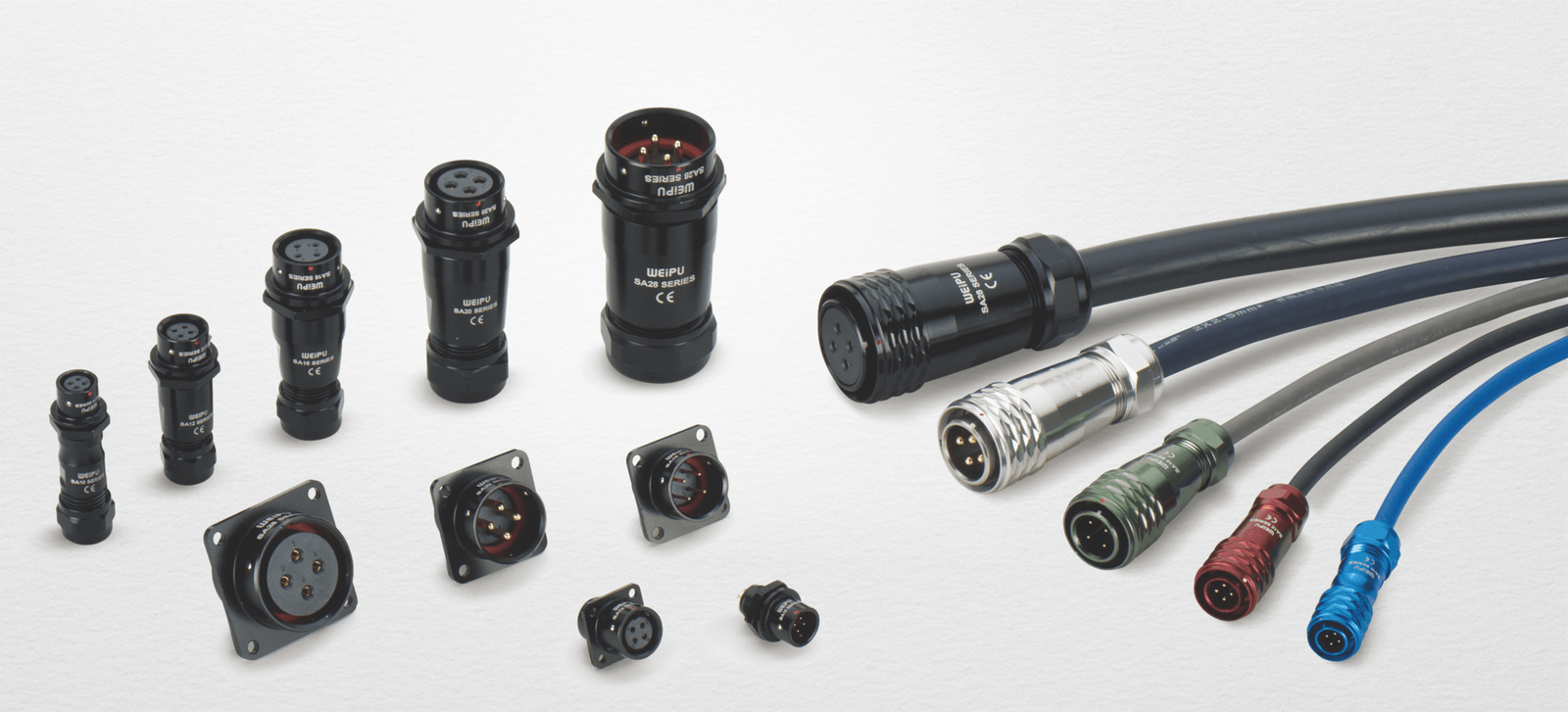

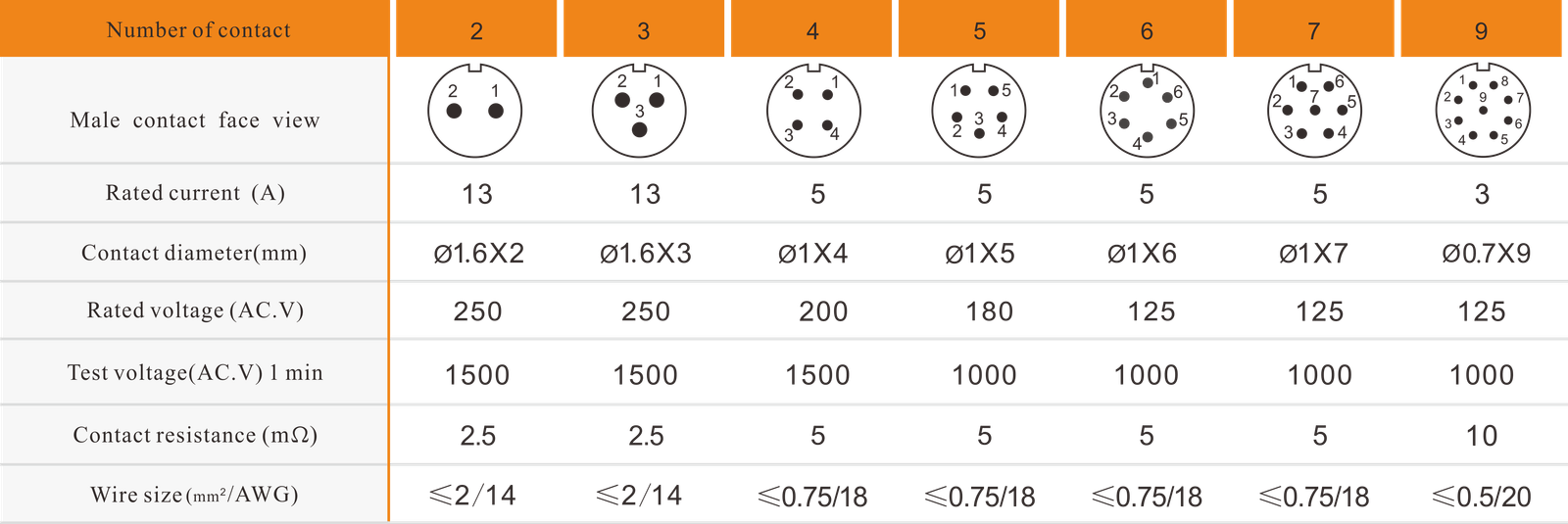

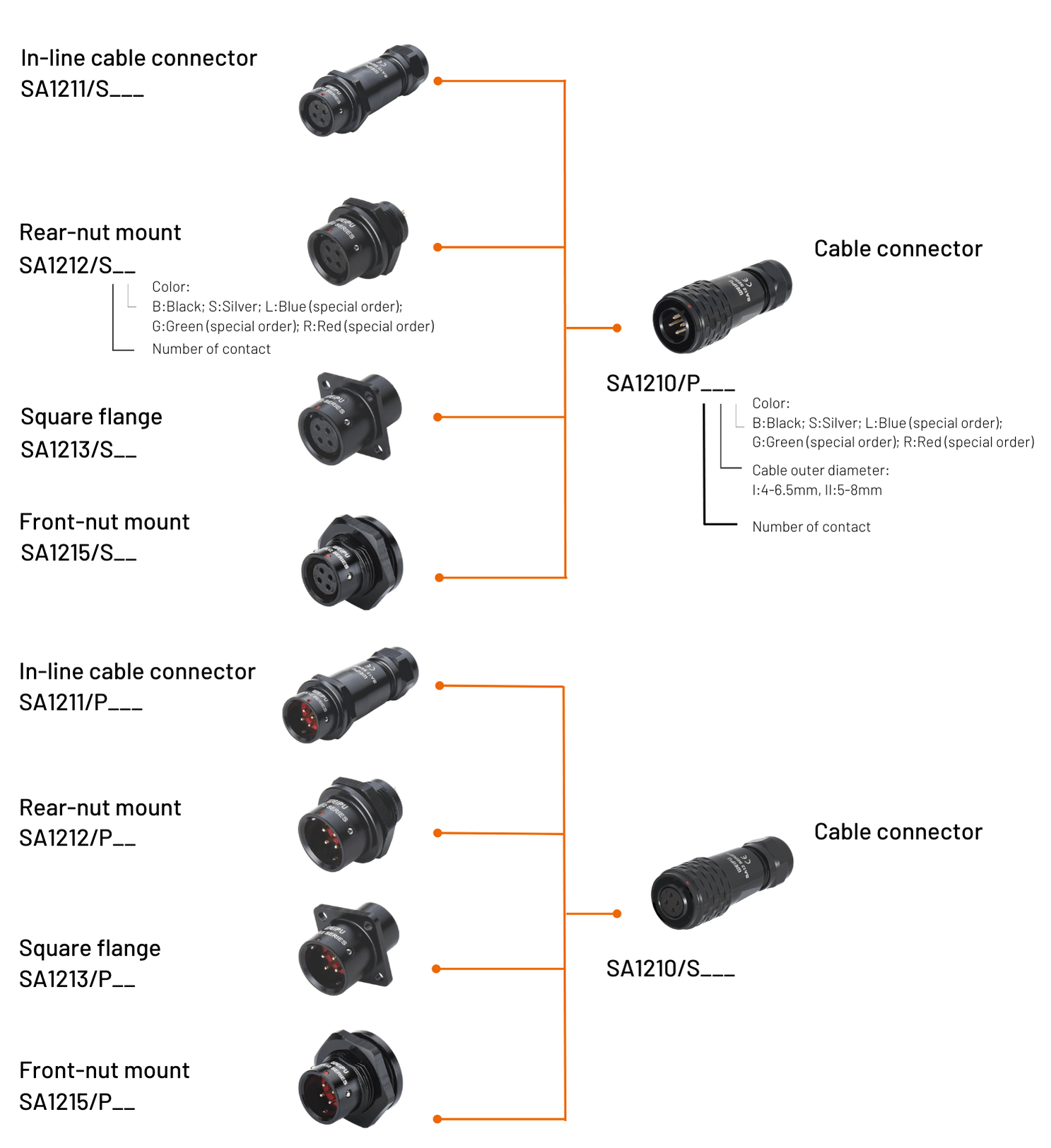

The WEIPU SA12 Series is a compact anodized aluminum connector specially designed for applications that require fast connection and are easy to grasp. With versatile mounting options, including panel mount, cable mount, and in-line cable mount, the SA12 Series offers the flexibility of cable-to-cable or cable-to-panel connections, with either male or female ends. Key Feature: • Contact Range: Available with 2-9 contacts, perfect for small to medium connection needs. • Rated Current: Supports 3-13 A, ideal for low to medium power applications. • Gold Plated Pins: Provides superior conductivity, enhanced durability, and corrosion resistance. • IP67 Rating: Fully sealed against dust and water ingress when mated, ensuring reliable operation in harsh environments. • Assembly Available: Custom assembly options tailored to… Key features: • Dust proof • Water tight • Multi-color • Quick connection Manufacturer reference: WEIPU SA12 — Circular Connector. Available to order. Lead time and price confirmed in the quotation. Supplied by ISIGECO: engineering support, manufacturer documentation and integration with your control system (PLC, fieldbus or IIoT gateway).

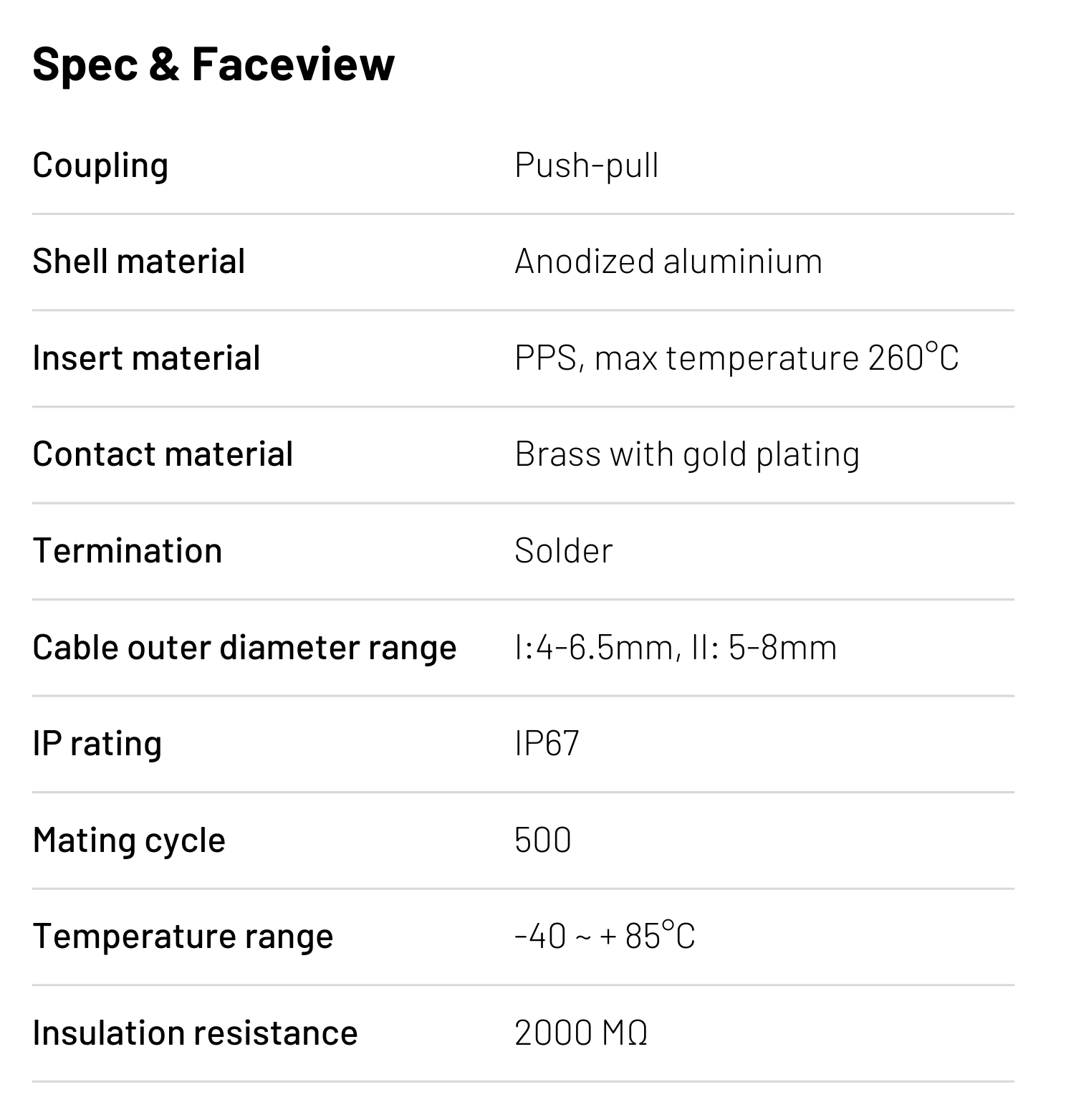

Specifications
| Protection rating | IP67 |

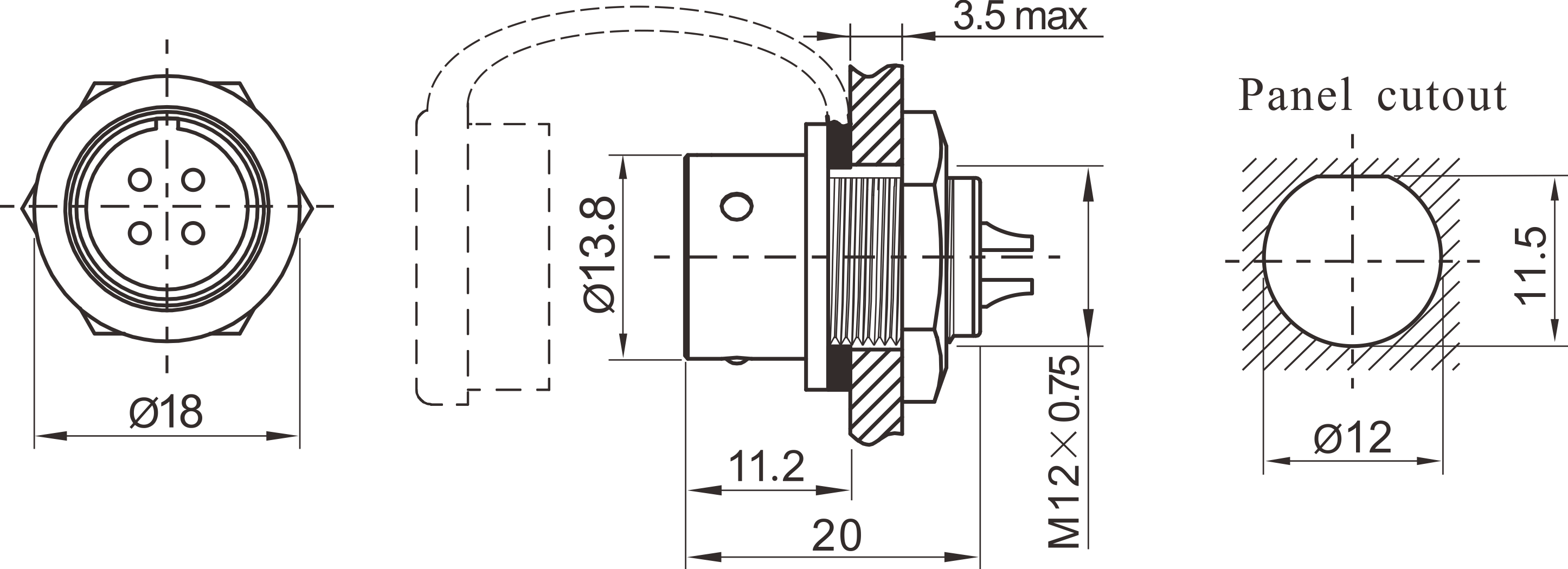

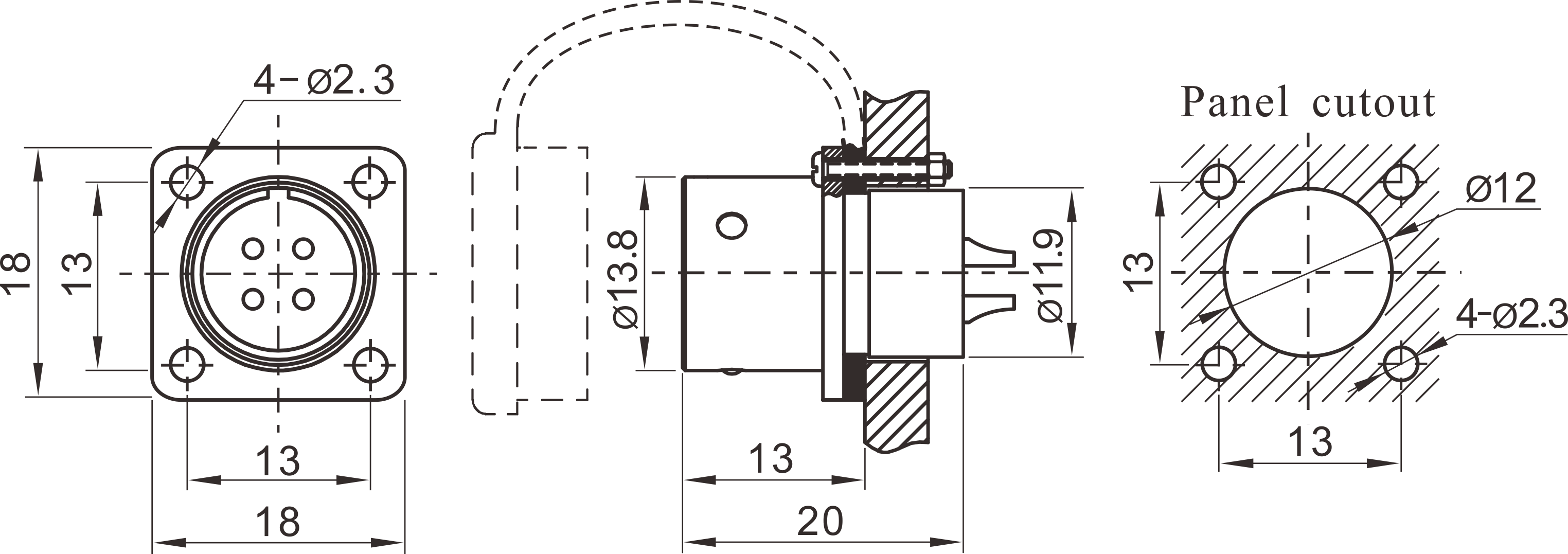

| Mounting hole size | 12 mm |
