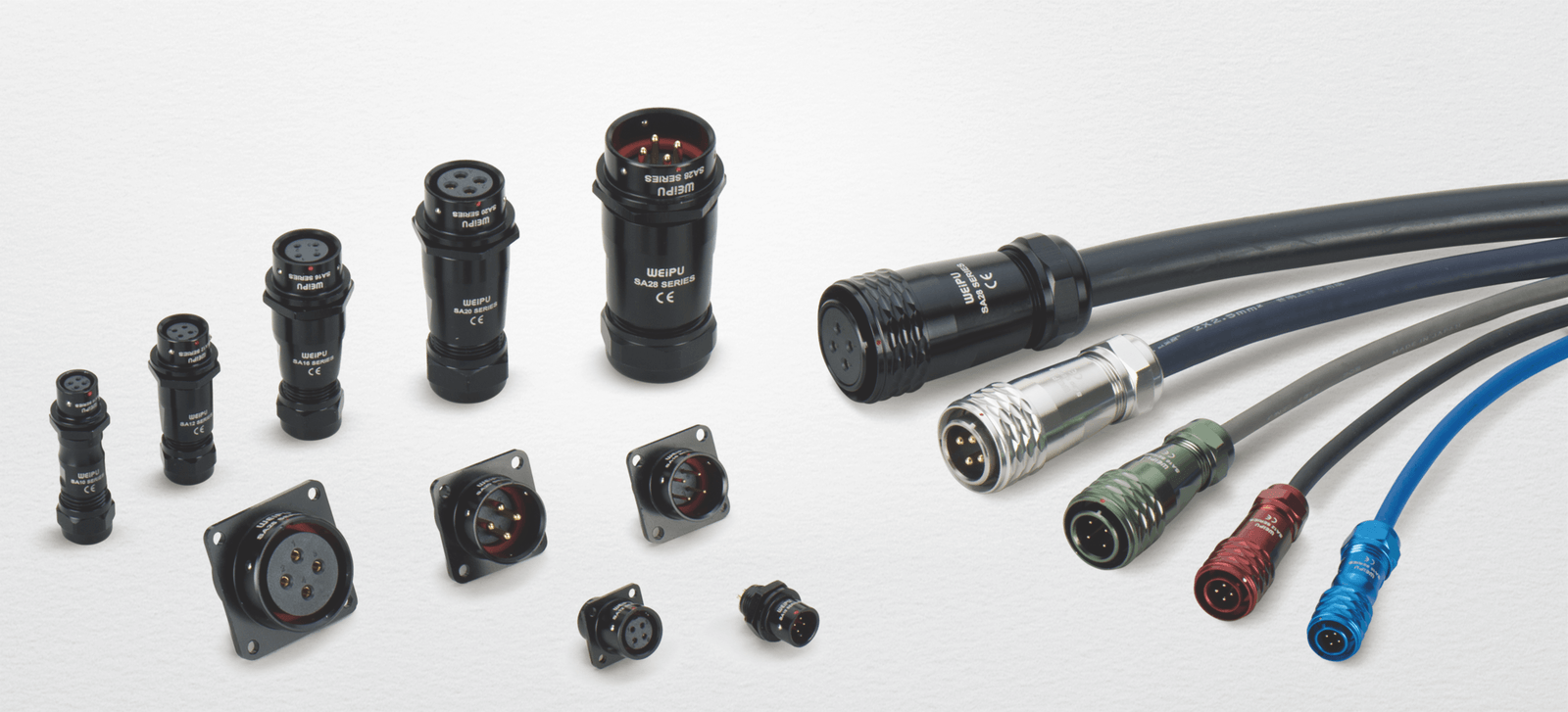

SA28
- Brand: WEIPU
- Reference: WEIPU-SA28
- Manufacturer reference: SA28
- Family: Industrial connectors
Price on request · On request

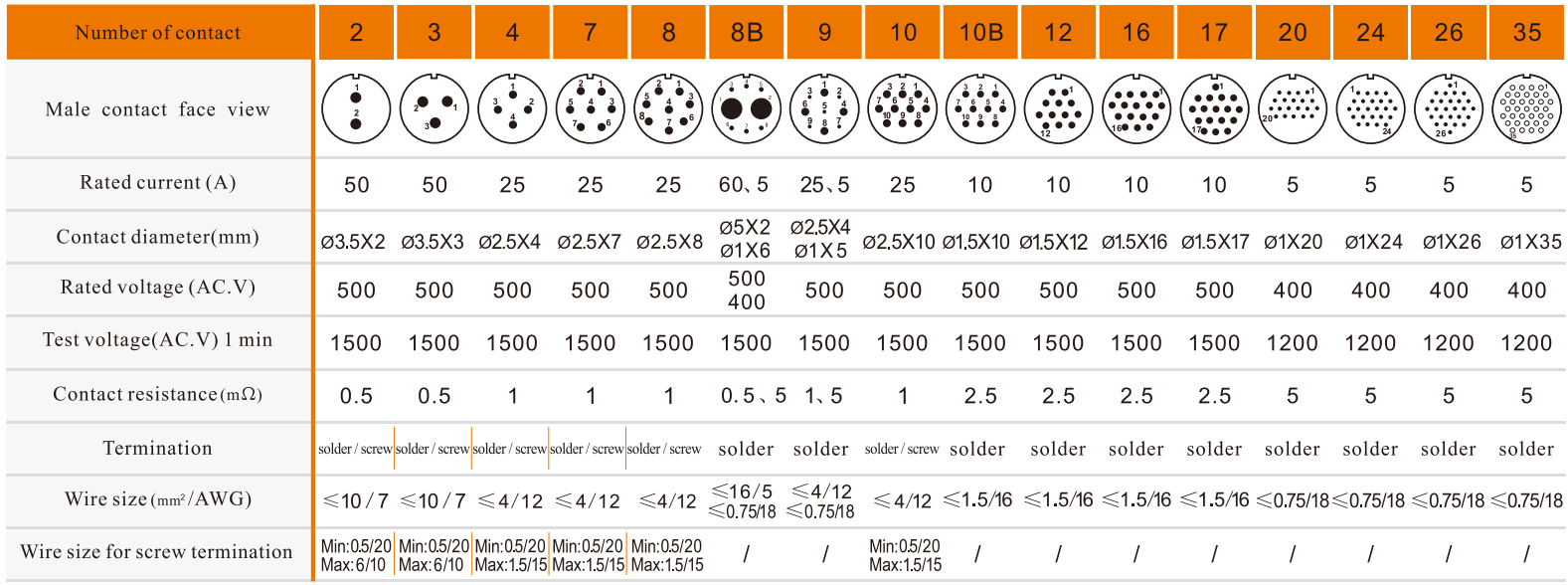

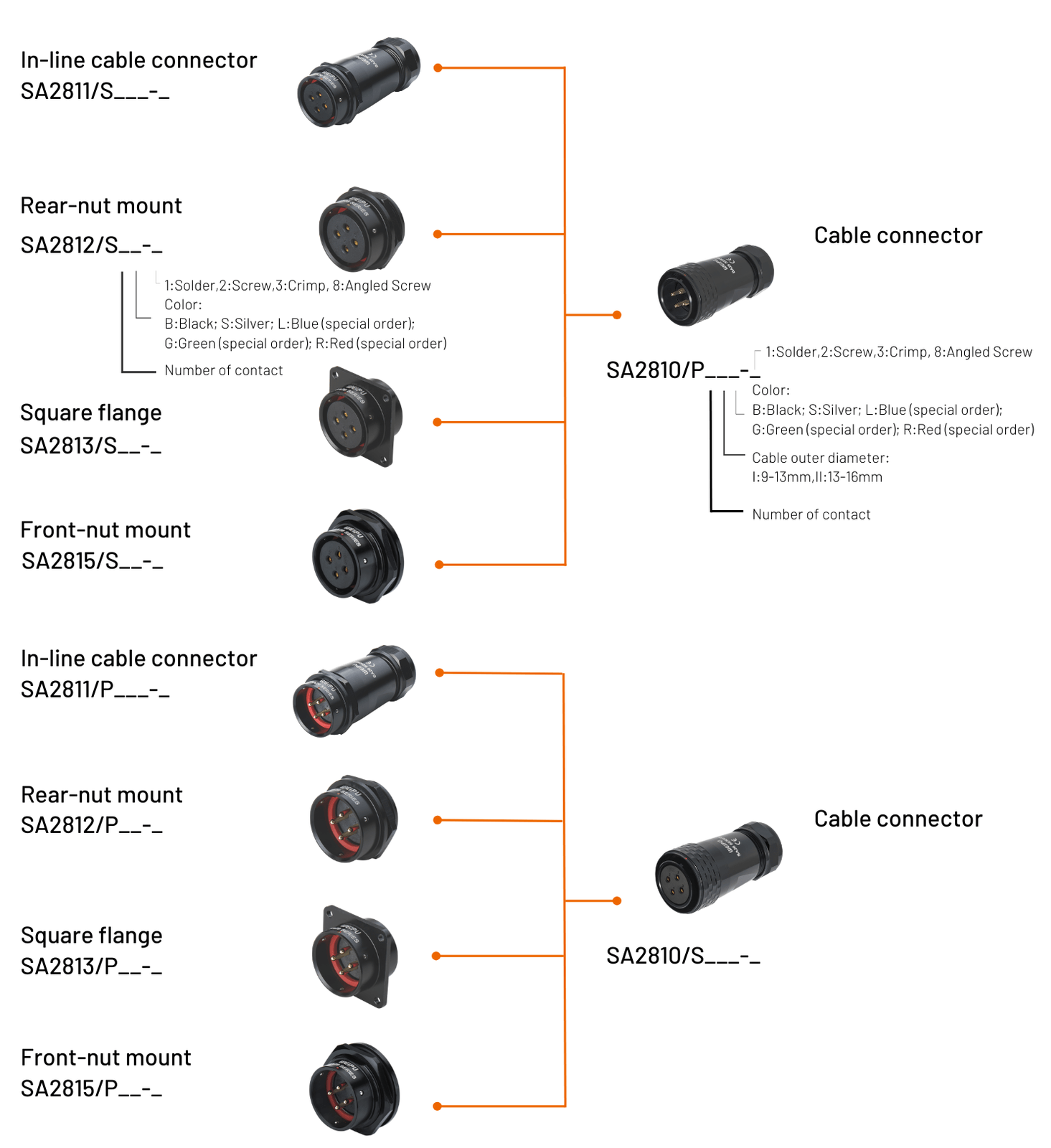

The WEIPU SA28 Series is a large-sized connector made from anodized aluminum, designed for applications requiring fast connection and robust material. Offering solder, crimp, and screw terminals, the SA28 connectors provide easy termination styles, ensuring flexibility and ease of use. Key Features: • Large Size: Designed for high-power applications, providing a reliable connection for demanding environments. • Contact Range: Available with 2-35 contacts, offering flexibility to meet various connection needs. • Rated Current: Supports 5-60 A, ideal for both low and high-power applications. • Gold Plated Pins: Guarantees superior conductivity, corrosion resistance, and long-term durability. • IP67 Rating: Fully sealed against dust and water ingress when mated, ensuring reliable performance in challenging… Key features: • Quick connection • Multi-color options • Dust proof • Water tight Manufacturer reference: WEIPU SA28 — Circular Connector. Available to order. Lead time and price confirmed in the quotation. Supplied by ISIGECO: engineering support, manufacturer documentation and integration with your control system (PLC, fieldbus or IIoT gateway).

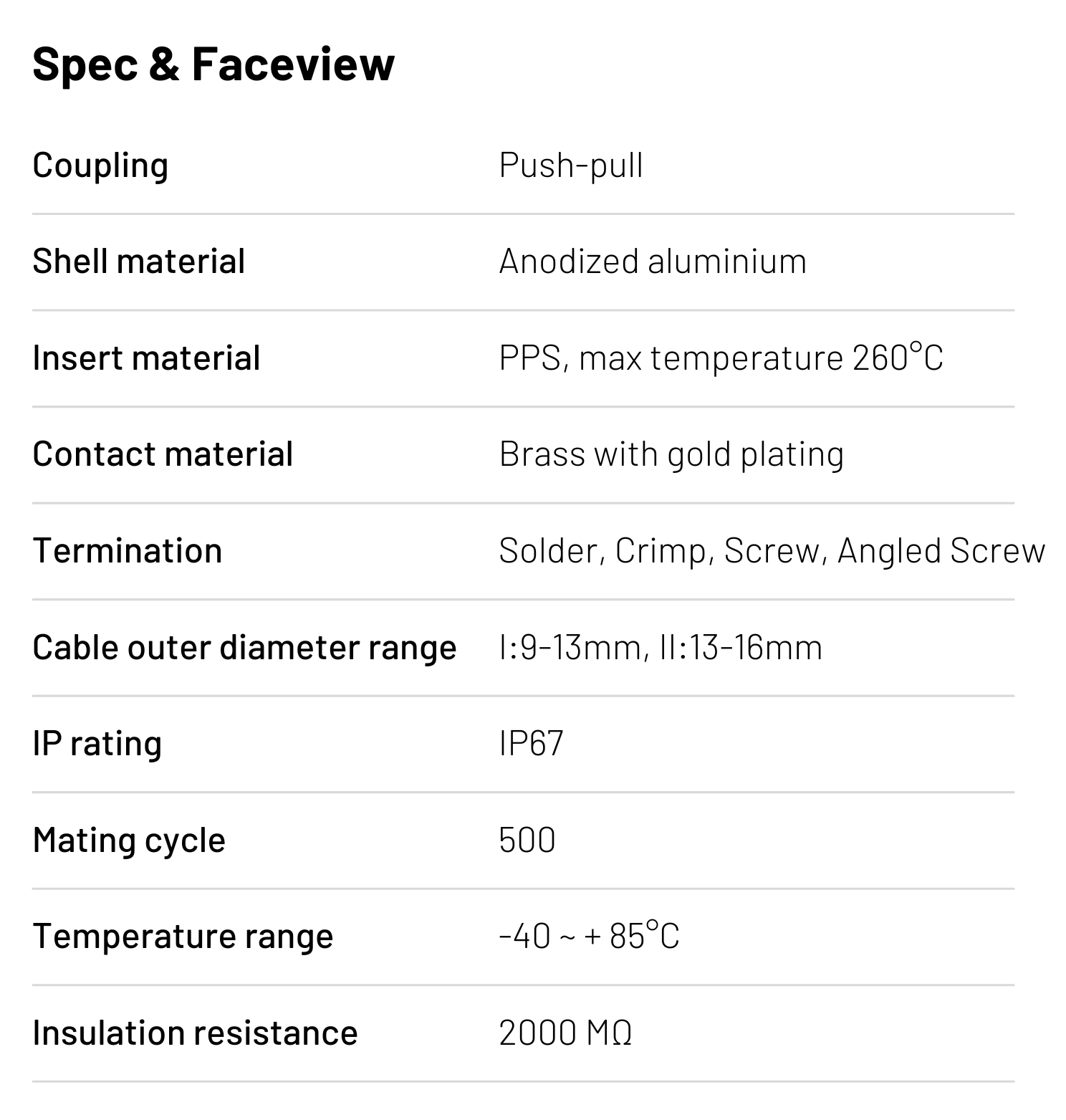

Specifications
| Protection rating | IP67 |
| Mounting hole size | 28 mm |
