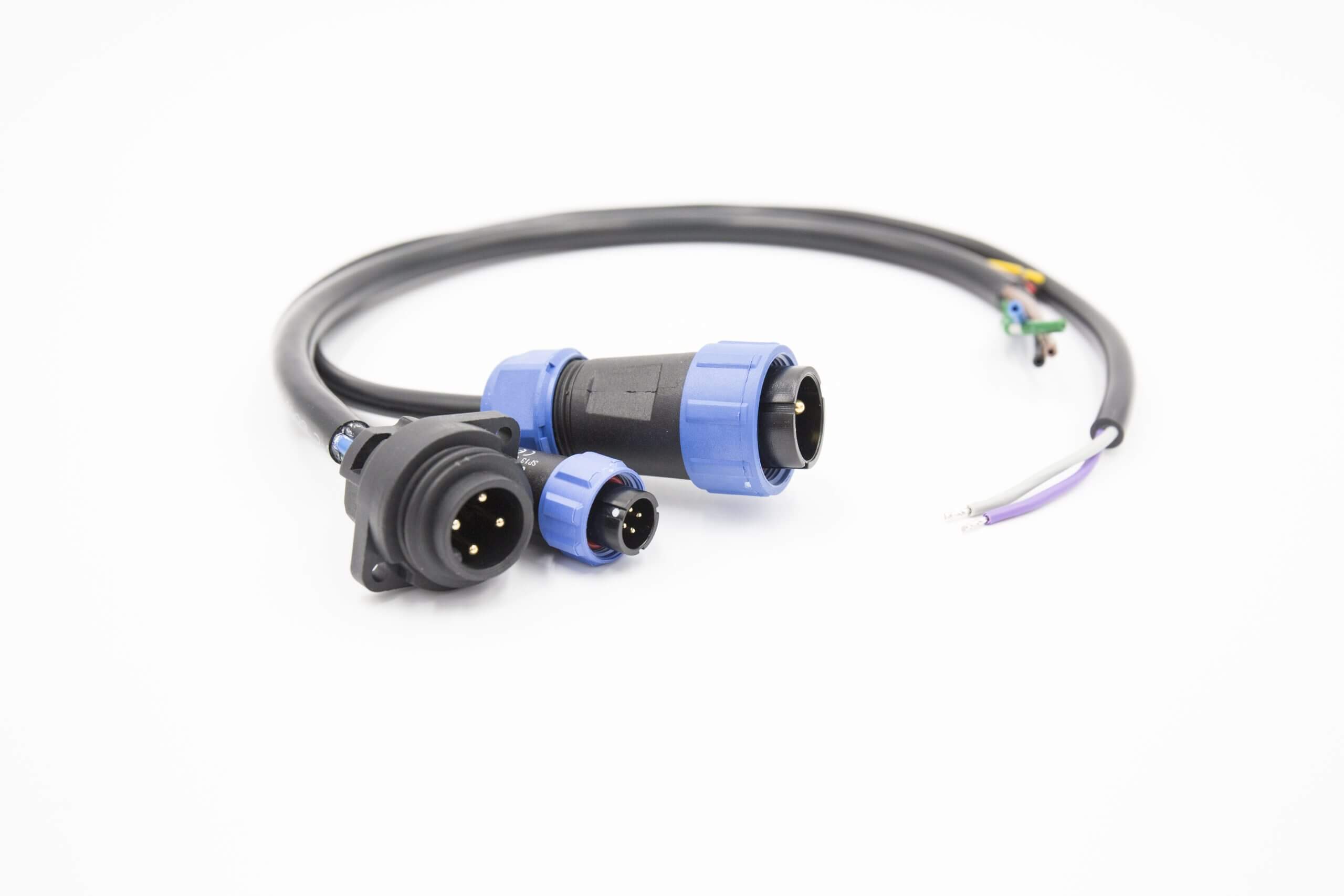

SP17
- Brand: WEIPU
- Reference: WEIPU-SP17
- Manufacturer reference: SP17
- Family: Industrial connectors
Price on request · On request

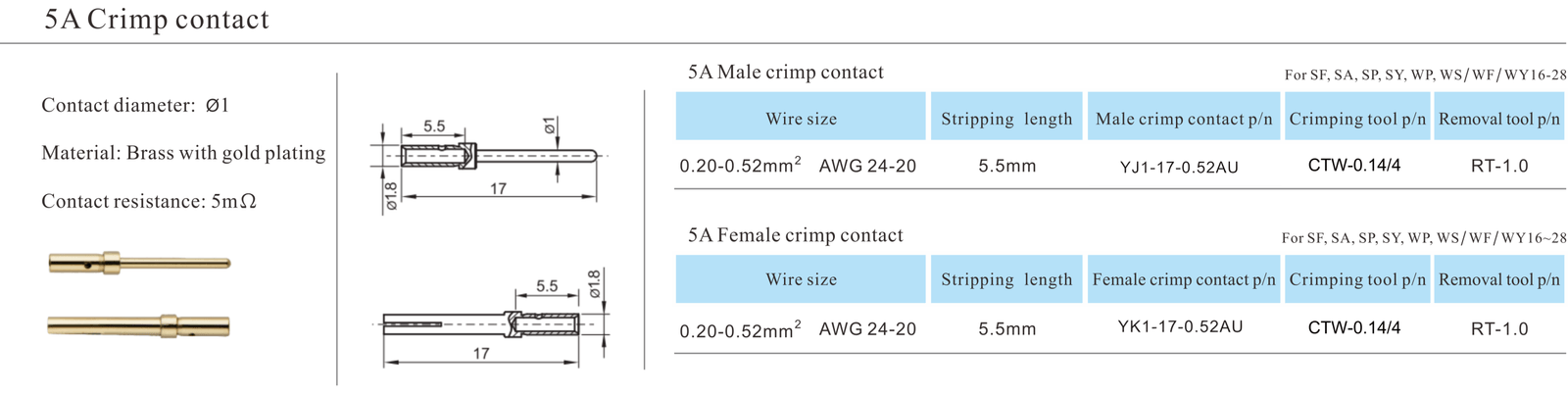

The WEIPU SP17 Series is a medium-sized, IP68-rated, UL-certified circular connector engineered for high performance in harsh environments that require reliable power or signal connections. It is available in Solder, Screw, Horizontal mount screw, and Crimp termination for different contact arrangements. Key Features: • Medium Size: Offers the right balance between compactness and rugged performance, perfect for demanding environments. • Contact Range: Available with 1-10 contacts, providing flexibility for various connection configurations. • Rated Current: Supports 5-50 A, suitable for both low and medium-power applications. • Gold Plated Pins: Ensures optimal conductivity, corrosion resistance, and long-term durability. • IP68 Rating: Fully protected against dust and water ingress when… Key features: • UL certificated • IP68 Protection • Solder, screw, crimp termination • Medium size Manufacturer reference: WEIPU SP17 — Circular Connector. Available to order. Lead time and price confirmed in the quotation. Supplied by ISIGECO: engineering support, manufacturer documentation and integration with your control system (PLC, fieldbus or IIoT gateway).

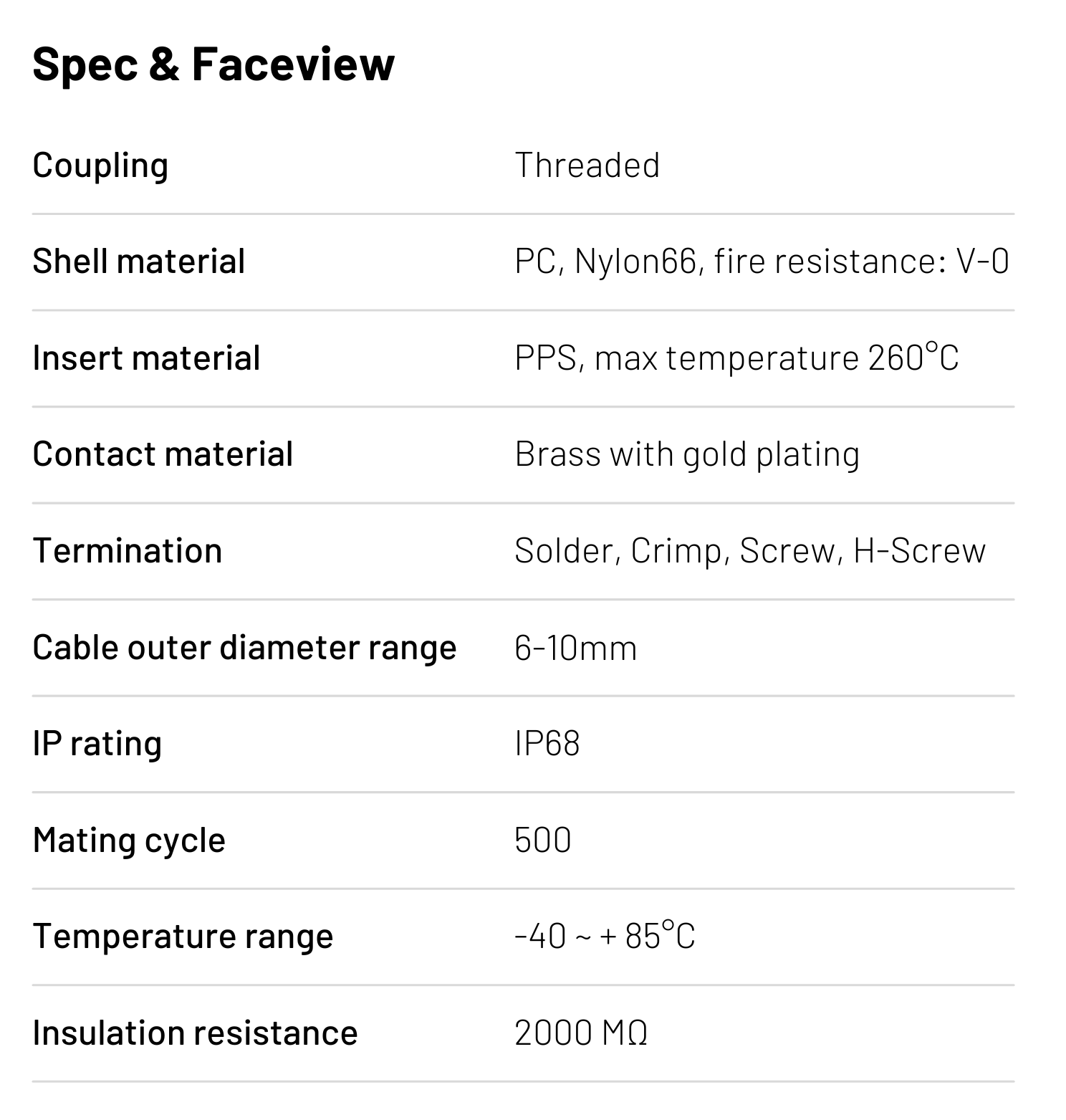

Specifications
| Protection rating | IP68 |

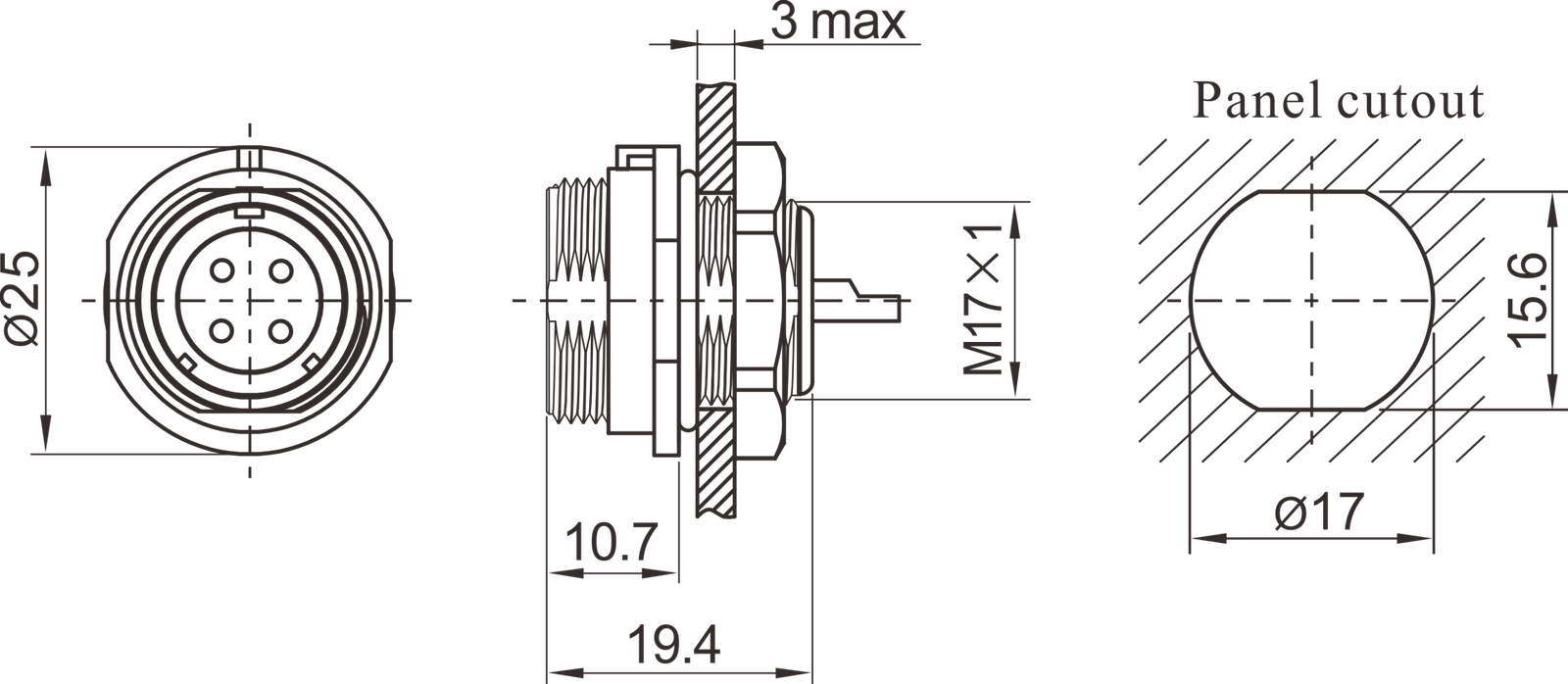

| Mounting hole size | 17 mm |
