SP13
- Brand: WEIPU
- Reference: WEIPU-SP13
- Manufacturer reference: SP13
- Family: Industrial connectors
Price on request · On request

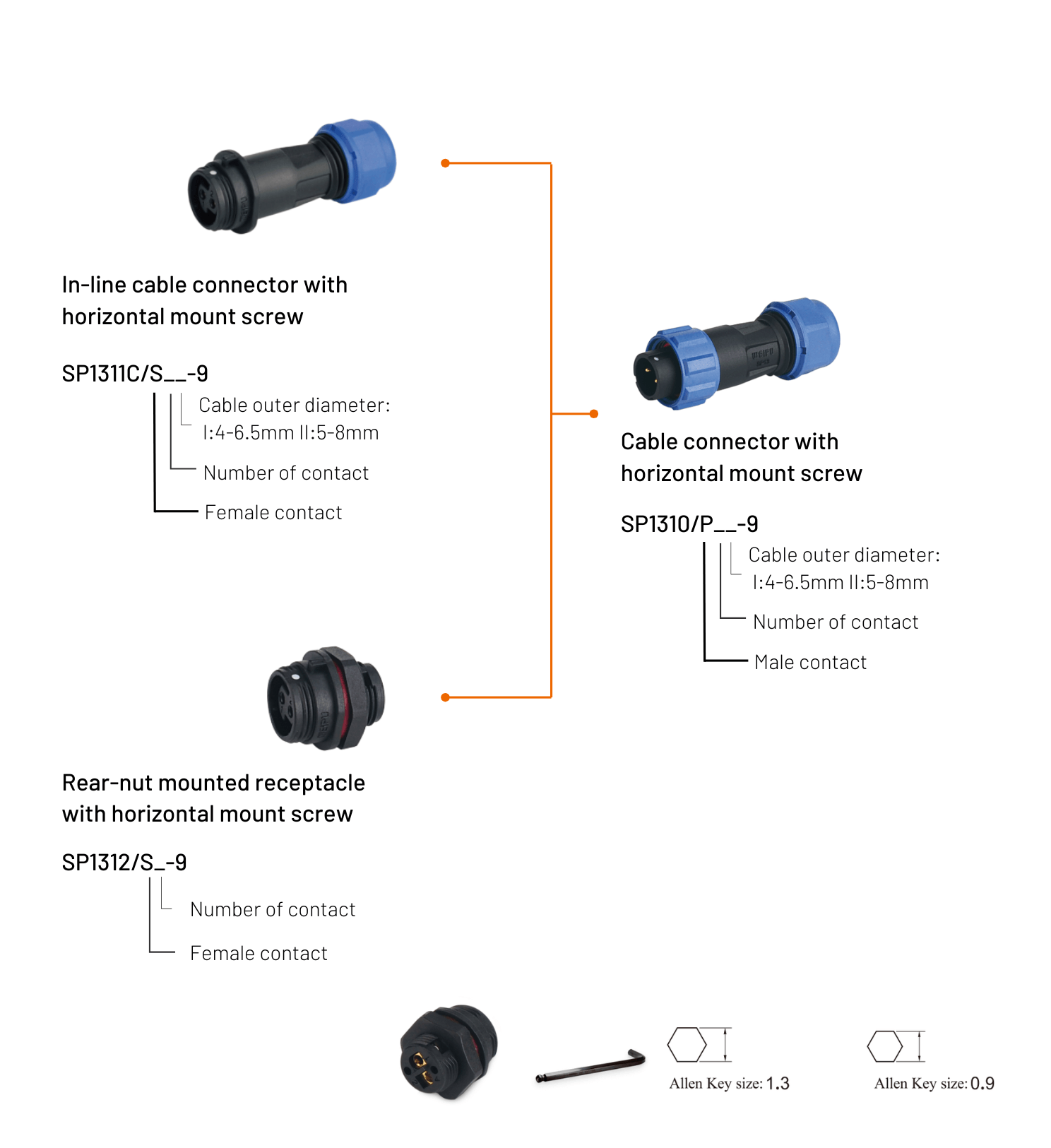

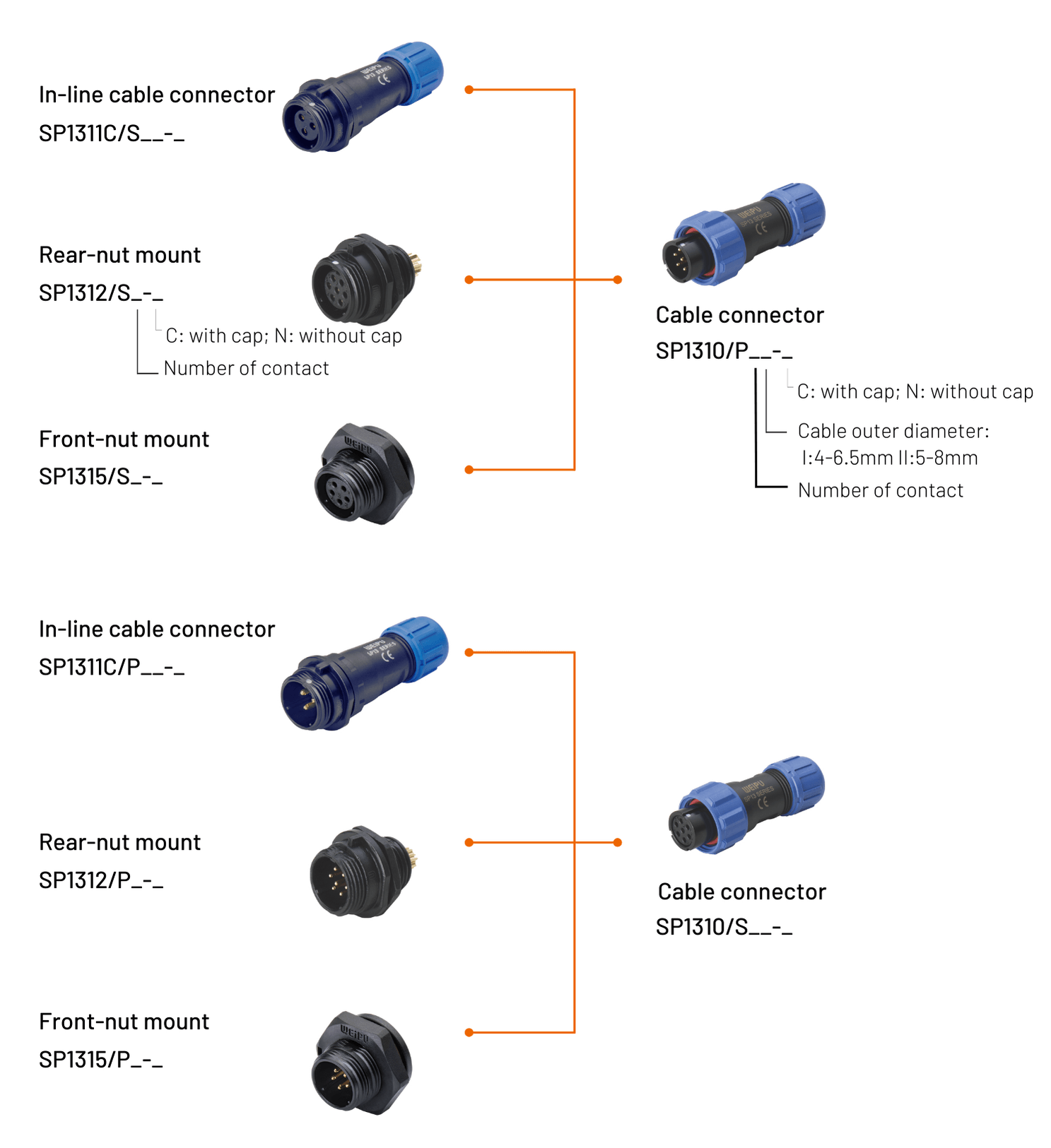

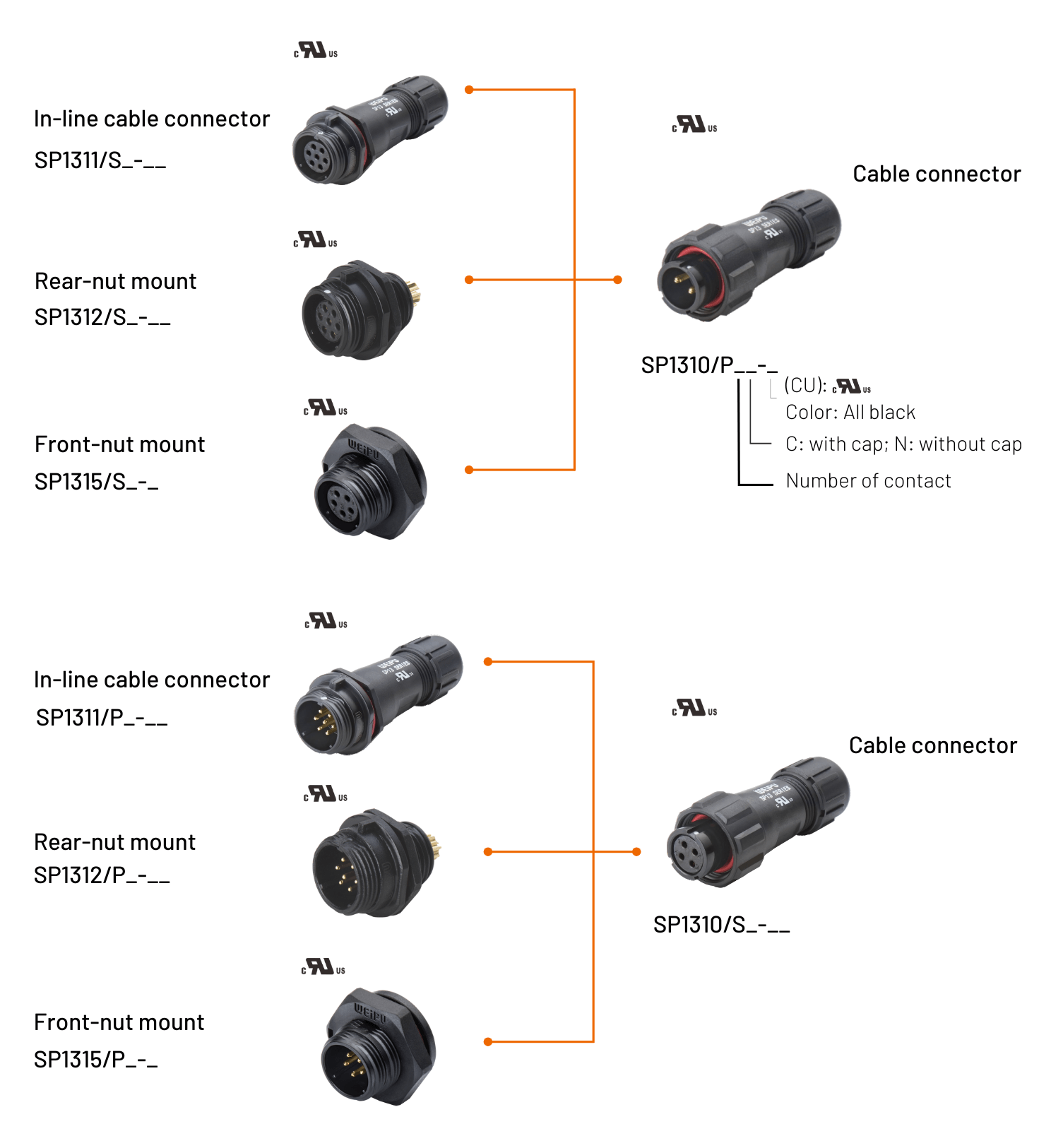

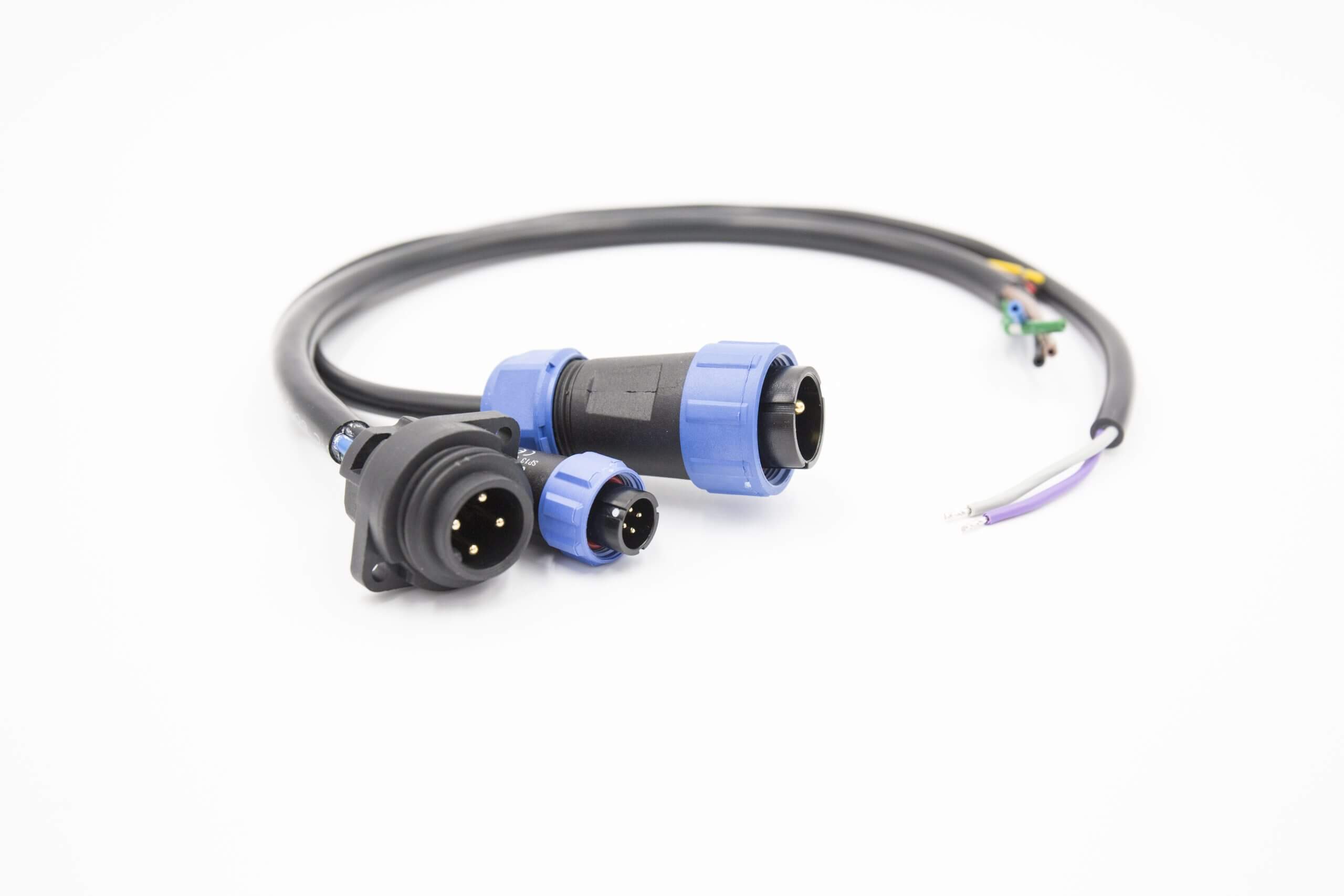

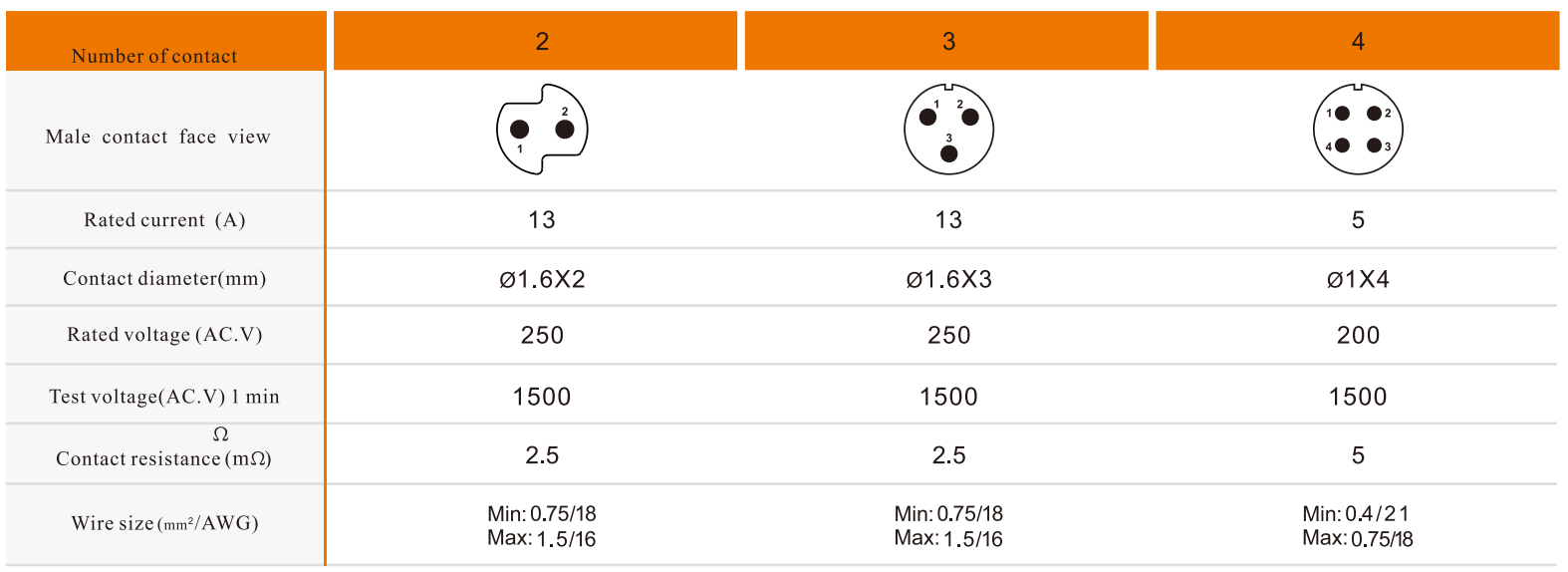

The WEIPU SP13 Series is a small-size IP68 waterproof connector designed specifically for applications that require space-saving solutions while maintaining high water resistance. It is available in panel mount, cable mount, and in-line cable mount options, and termination options of Solder and Horizontal mount screw for different contact of arrangement. Key Features: • Small Size: Compact design makes it perfect for applications with limited space, offering reliable connections without taking up unnecessary room. • Contact Range: Available with 2-9 contacts, providing flexibility to meet various connection needs. • Rated Current: Supports 3-13 A, suitable for both low and medium-power applications. • Gold Plated Pins: Ensures superior conductivity, corrosion resistance, and durability. • IP68 Rating: Fully… Key features: • UL Certificated • Dust proof • Water tight-IP68 • Small size Manufacturer reference: WEIPU SP13 — Circular Connector. Available to order. Lead time and price confirmed in the quotation. Supplied by ISIGECO: engineering support, manufacturer documentation and integration with your control system (PLC, fieldbus or IIoT gateway).

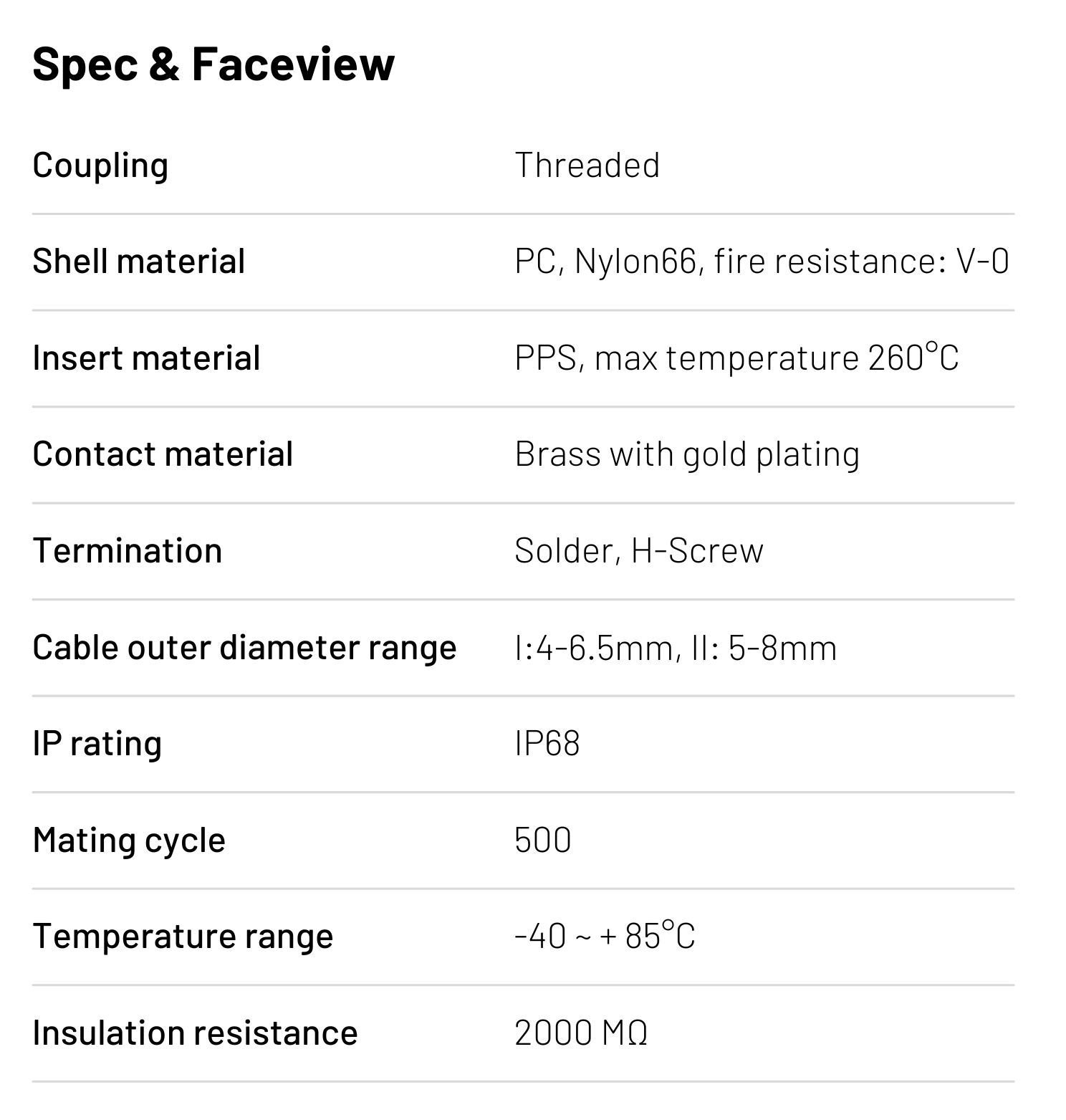

Specifications
| Protection rating | IP68 |
| Mounting hole size | 13 mm |
