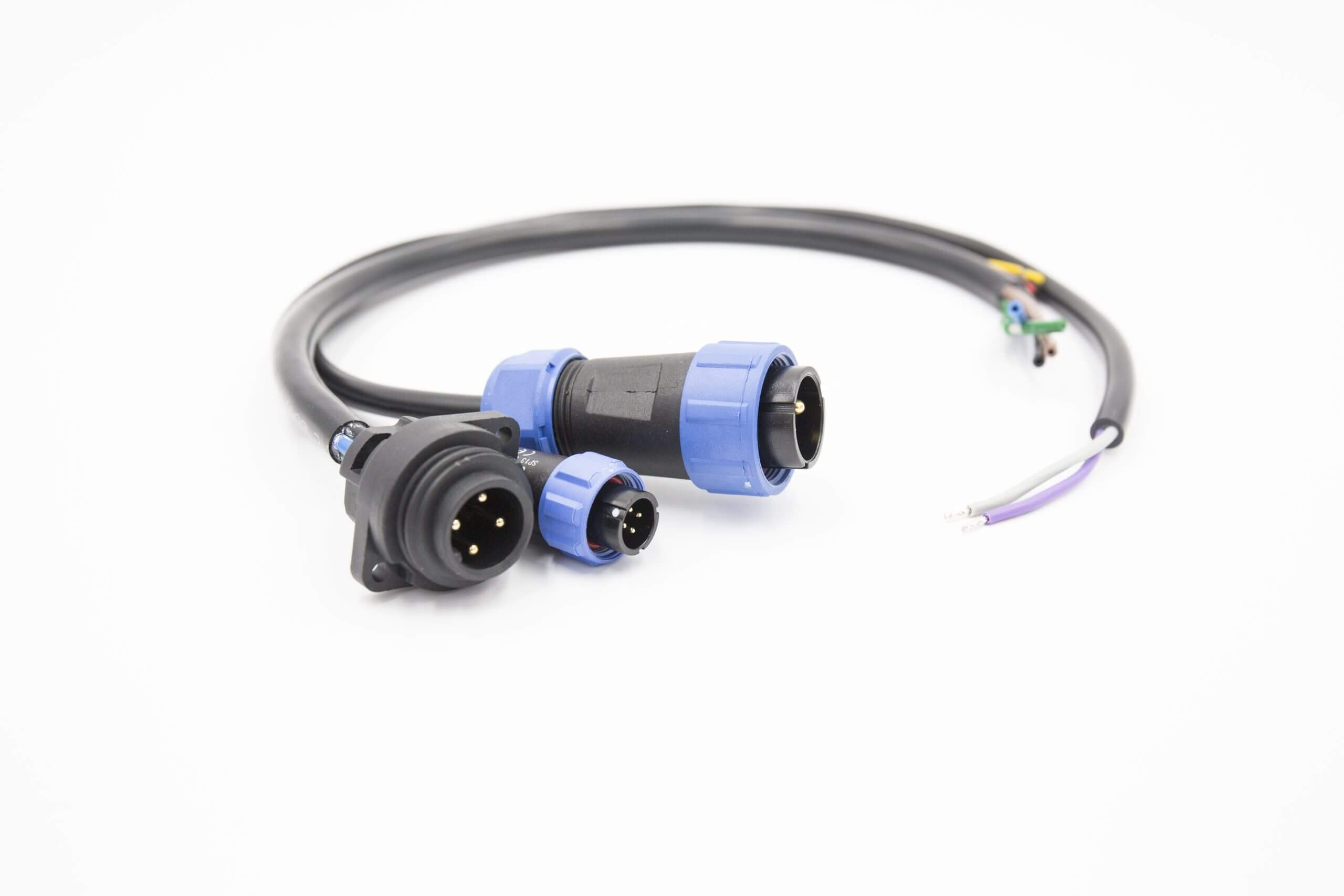

SP29
- Brand: WEIPU
- Reference: WEIPU-SP29
- Manufacturer reference: SP29
- Family: Industrial connectors
Price on request · On request

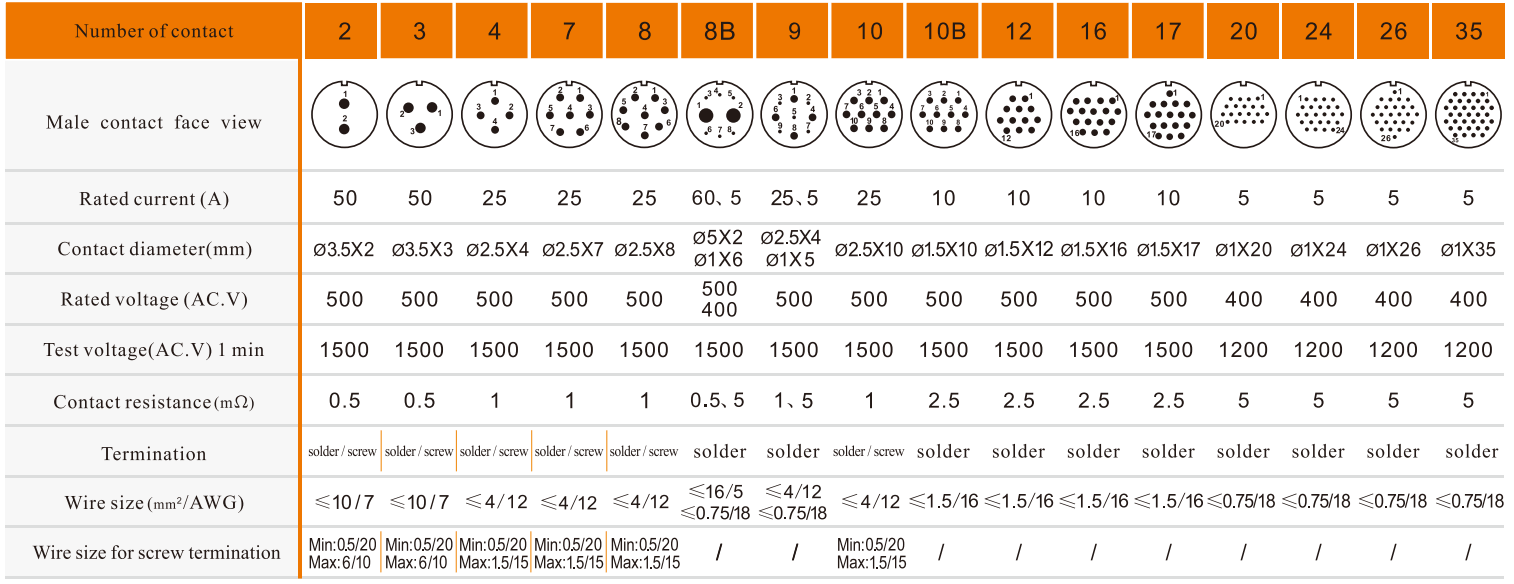

The WEIPU SP29 series is a large-size, high-performance IP68 waterproof connector specially designed for reliable operation in demanding applications requiring superior water resistance. As part of the WEIPU SP Series, the SP29 connector excels in harsh and rugged environments, offering power and signal arrangements to ensure seamless connectivity in various industrial and outdoor applications. Key Features: • Large size: Built for high-power applications and tough environments. • Contact Range: Available with 2-35 contacts, providing flexibility for diverse needs. • Rated Current: Supports 5-60 A, ensuring reliable power delivery in heavy-duty applications. • Gold Plated Pins: Delivers optimal conductivity and long-lasting durability. • IP68 Rating: Fully protected against dust and water ingress when mated, … Key features: • Solder, screw, crimp termination • Water tight-IP68 • Large size Manufacturer reference: WEIPU SP29 — Circular Connector. Available to order. Lead time and price confirmed in the quotation. Supplied by ISIGECO: engineering support, manufacturer documentation and integration with your control system (PLC, fieldbus or IIoT gateway).

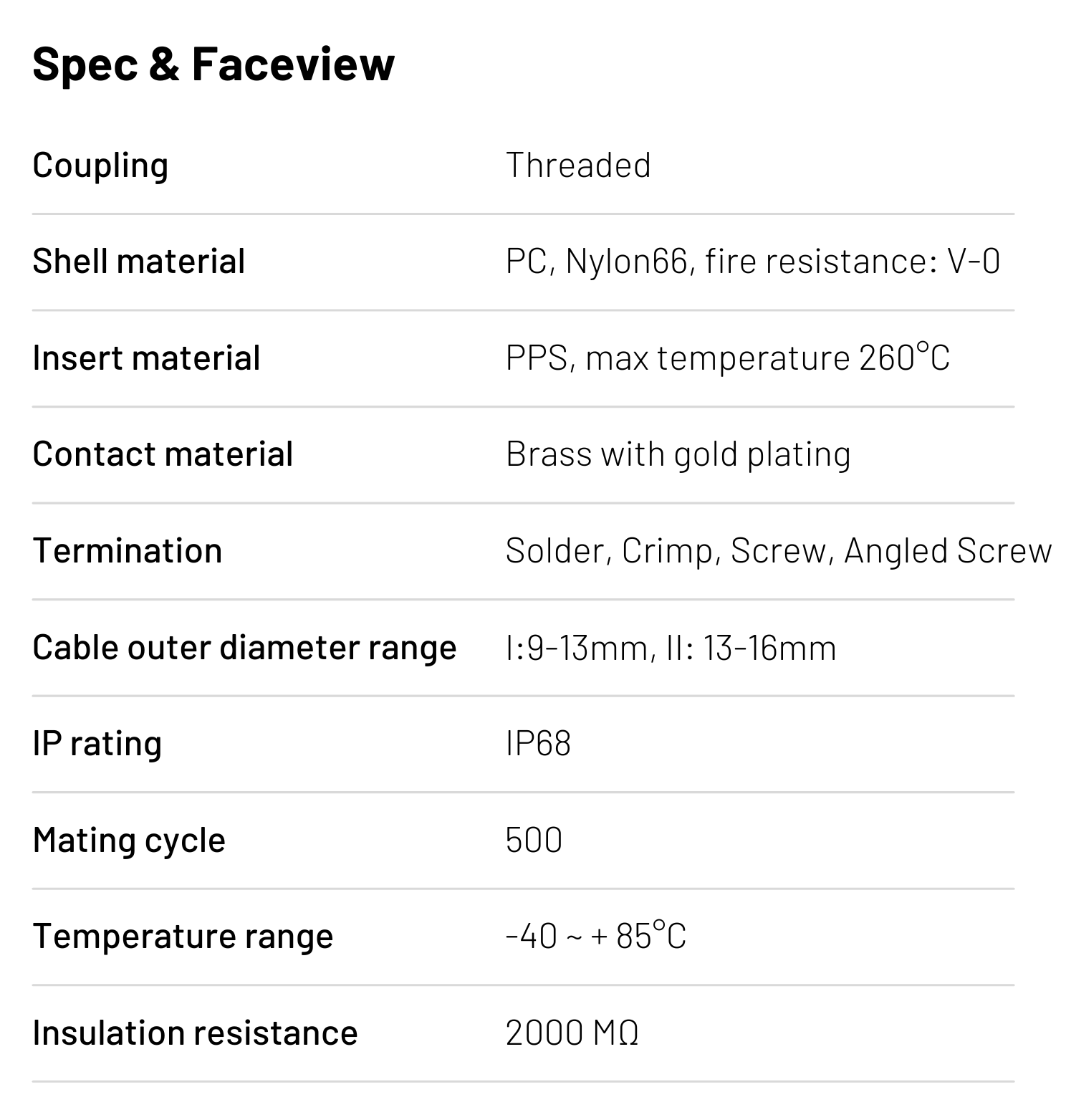

Specifications
| Protection rating | IP68 |

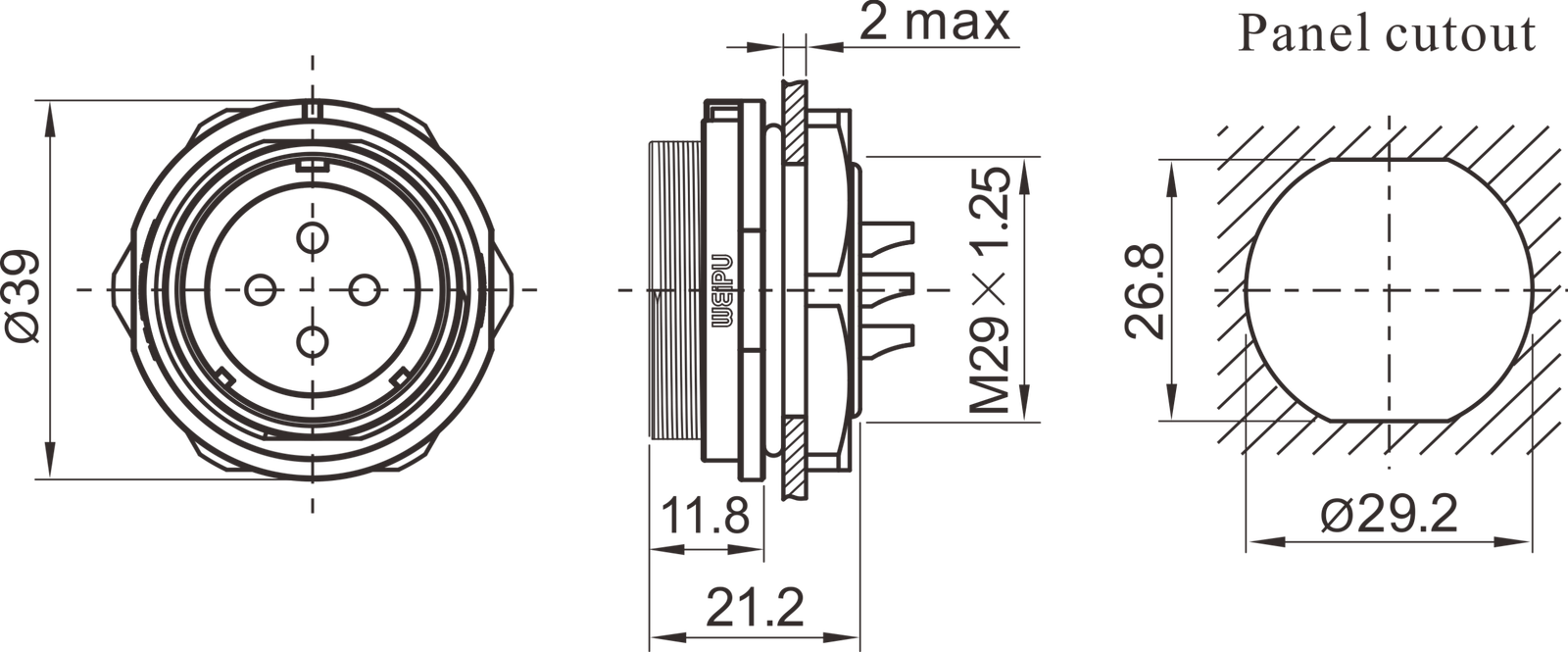

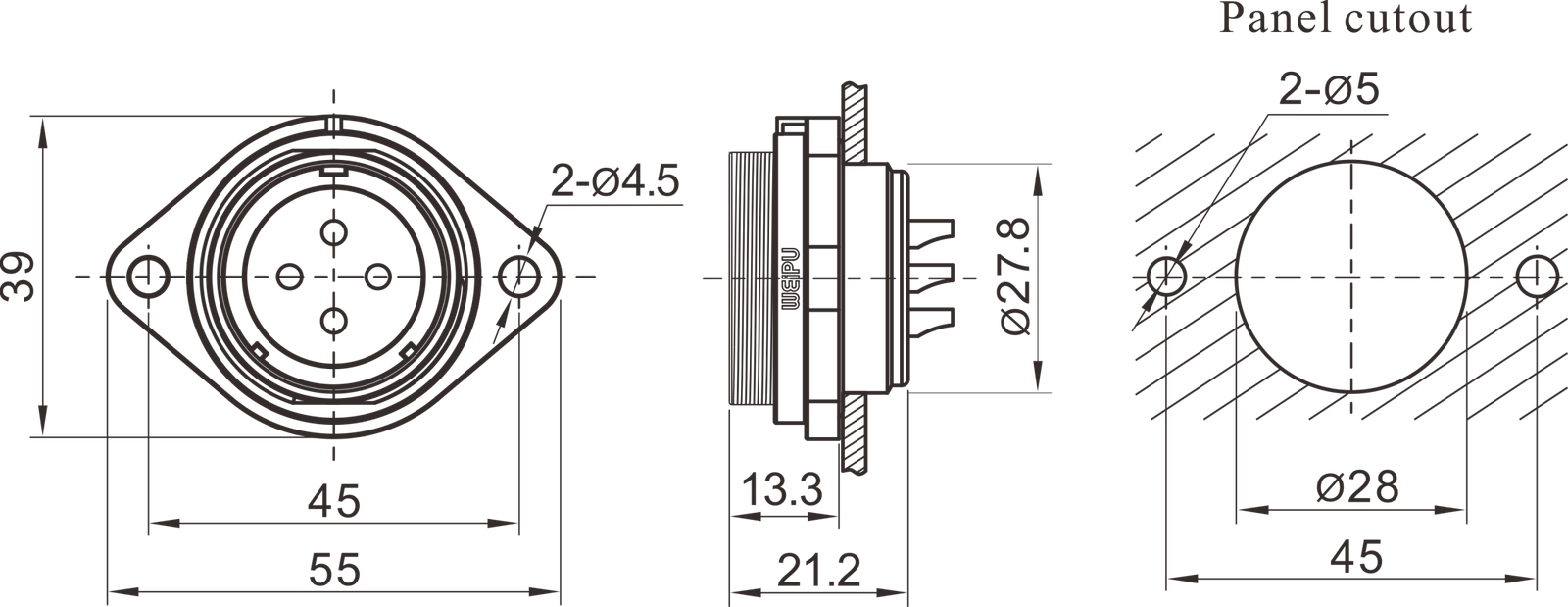

| Mounting hole size | 29 mm |
