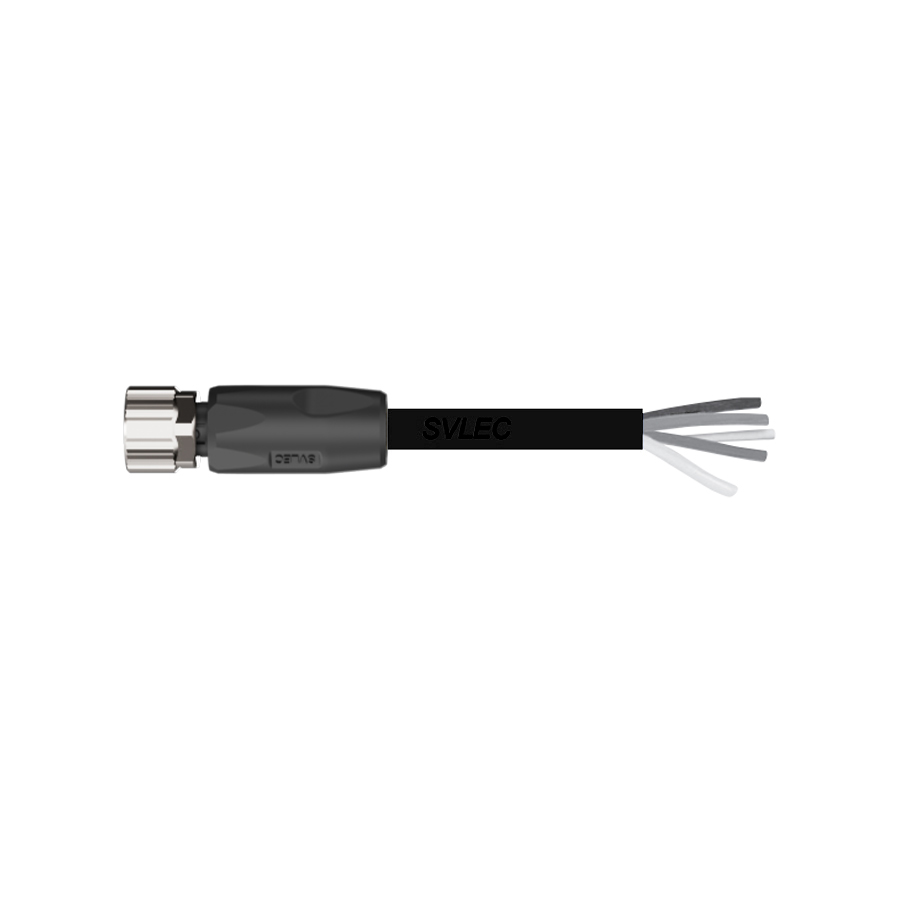

M12L buckle, straight out, 5P female plug, black PUR cable length L meters · SCAC-M12L-FS-5P-BK-PUR-L
- Brand: SVLEC
- Reference: SVLEC-912454-962-L
- Manufacturer reference: 912454-962-L
- Family: Cables and cordsets
Price on request · On request
M12L buckle, straight out, 5P female plug, black PUR cable length L meters. Key features: • Rated current: 12 A • LED indication: No • Cable colour: Black • Cable type: single-ended precast • Rated voltage: 63 V AC/DC • Cable material: PUR • Temperature range: -25...+80℃ • Type: M12 female connector • Cable outlet: Straight outlet • Number of poles: 5 • Coding: L • Shielding: No • Number of cores × cross-section: 5x1.5mm2 • Protection degree: IP67 Manufacturer reference: SVLEC 912454-962-L — Connection technology › Fieldbus cordsets and connectors › M12 (S, T, L, K-Code) power connector › Overmoulded cordset. Available to order. Lead time and price confirmed in the quotation. Supplied by ISIGECO: engineering support, manufacturer documentation and integration with your control system (PLC, fieldbus or IIoT gateway).
Specifications
| Rated voltage | 63 V AC/DC |
| Temperature range | -25...+80 °C |
| Protection rating | IP67 |
| Thread size | M12 |
