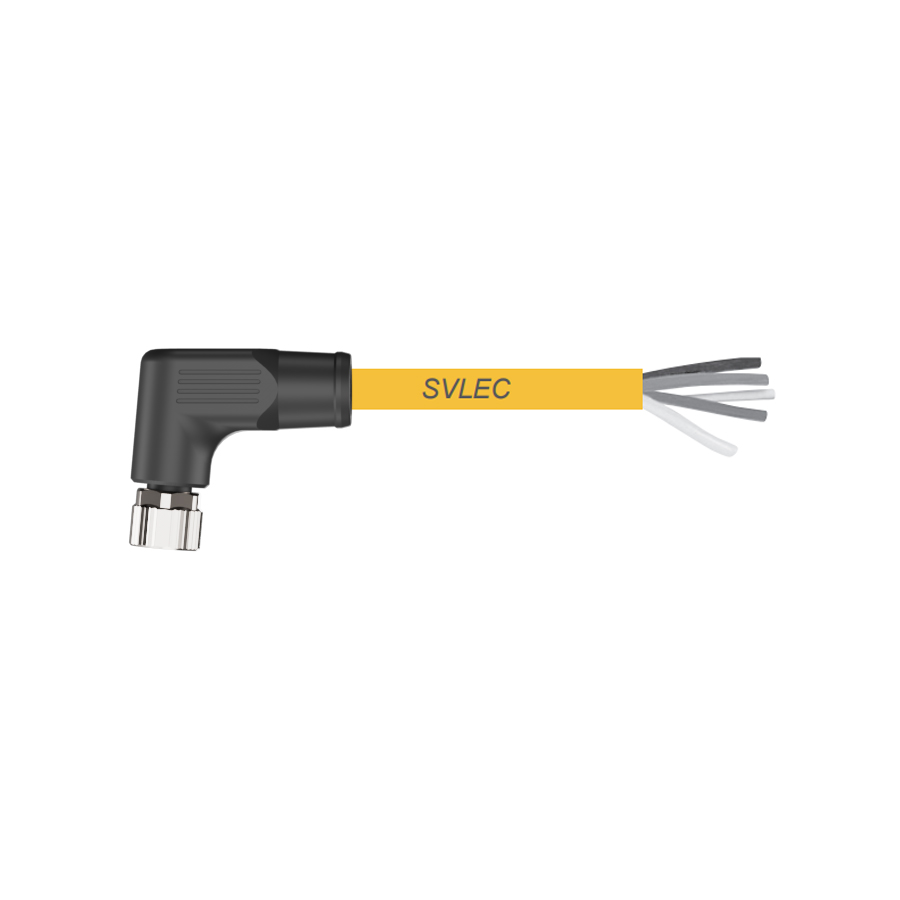

M12L buckle, single-ended precast, female bent 5-pin · SCAC-M12L-FR-5P
- Brand: SVLEC
- Reference: SVLEC-912455
- Manufacturer reference: 912455
- Family: Cables and cordsets
Price on request · On request
M12L buckle, single-ended precast, female bent 5-pin. Key features: • Rated current: 12 A • LED indication: No • Cable type: single-ended precast • Rated voltage: 63 V AC/DC • Temperature range: -25...+80℃ • Type: M12 male connector • Cable outlet: 90° • Number of poles: 5 • Coding: L • Shielding: No • Number of cores × cross-section: 5x1.5mm2 • Protection degree: IP67 Manufacturer reference: SVLEC 912455 — Connection technology › Fieldbus cordsets and connectors › M12 (S, T, L, K-Code) power connector › Overmoulded cordset. Available to order. Lead time and price confirmed in the quotation. Supplied by ISIGECO: engineering support, manufacturer documentation and integration with your control system (PLC, fieldbus or IIoT gateway).
Specifications
| Rated voltage | 63 V AC/DC |
| Temperature range | -25...+80 °C |
| Protection rating | IP67 |
| Thread size | M12 |
