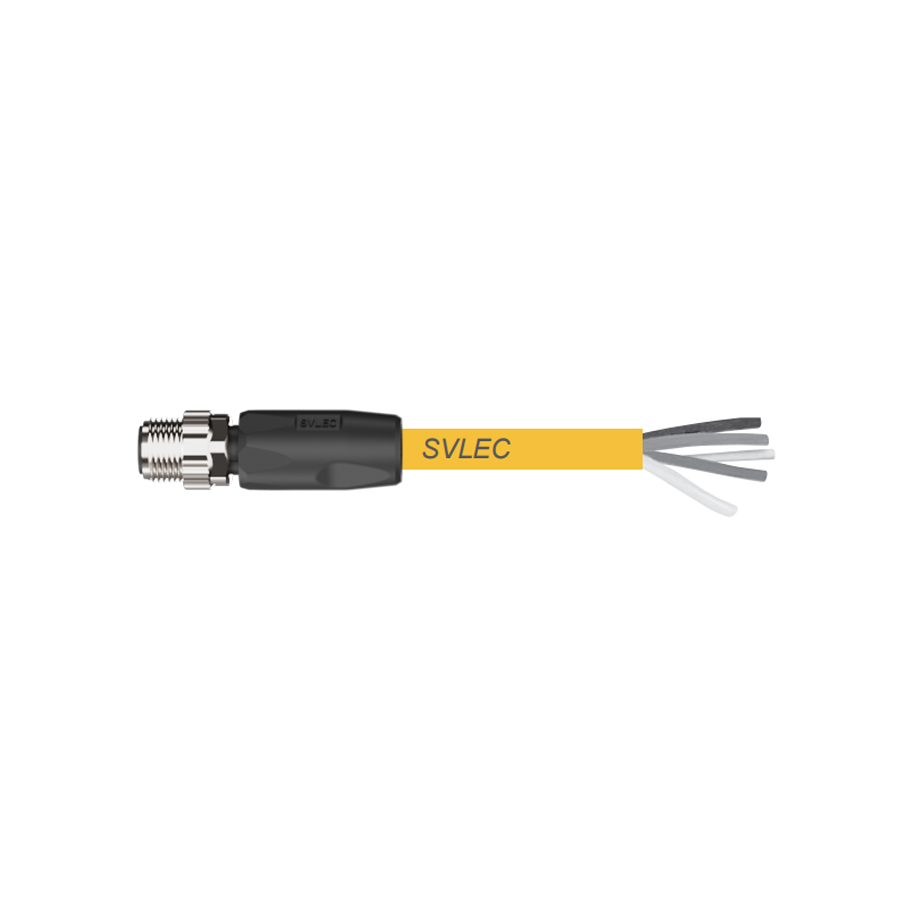

M12 single-ended precast, K buckle 5-pin male, yellow PVC wire length L meters · SCAC-M12K-MS-5P-YE-PVC-L
- Brand: SVLEC
- Reference: SVLEC-912564-961-L
- Manufacturer reference: 912564-961-L
- Family: Cables and cordsets
Price on request · On request
M12 single-ended precast, K buckle 5-pin male, yellow PVC wire length L meters. Key features: • Rated current: 12 A • LED indication: No • Cable colour: Yellow • Cable type: single-ended precast • Rated voltage: 630 V DC • Cable material: PVC • Temperature range: -25...+80℃ • Type: M12 male connector • Cable outlet: Straight outlet • Number of poles: 5 • Coding: K • Shielding: No • Number of cores × cross-section: 5x1.5mm2 • Protection degree: IP67 Manufacturer reference: SVLEC 912564-961-L — Connection technology › Fieldbus cordsets and connectors › M12 (S, T, L, K-Code) power connector › Overmoulded cordset. Available to order. Lead time and price confirmed in the quotation. Supplied by ISIGECO: engineering support, manufacturer documentation and integration with your control system (PLC, fieldbus or IIoT gateway).
Specifications
| Rated voltage | 630 V DC |
| Temperature range | -25...+80 °C |
| Protection rating | IP67 |
| Thread size | M12 |
